Acoustic Principles & Parameters of Perforated Ceilings
The acoustic performance of perforated aluminum ceilings depends on three key parameters: open area ratio, hole diameter, and backing acoustic material. Understanding their relationship is the foundation of good acoustic design.
-
Open Area Ratio: Higher open area means better absorption but lower structural strength. 15%–25% is generally the optimal balance.
-
Hole Diameter: Small holes (Ø2–4mm) absorb high frequencies; large holes (Ø6–10mm) absorb mid-to-low frequencies.
-
Backing Material: Glass wool or non-woven fabric are most common, 25–50mm thick, 48–80 kg/m³ density.
With proper configuration, perforated aluminum ceilings can achieve NRC 0.6–0.85, meeting the acoustic requirements of most commercial spaces.
Balancing Open Area and Structural Strength
Many designers worry that perforation reduces panel strength. In reality, within reasonable limits, the impact is minimal. Recommended parameters by open area ratio:
|
Open Area |
Recommended Gauge |
Max Panel Size |
Typical Use |
|---|---|---|---|
|
5%–15% |
1.0mm |
1200×3000mm |
Decorative focus, light absorption |
|
15%–25% |
1.0–1.5mm |
1200×3000mm |
Standard absorption, most common |
|
25%–35% |
1.5mm |
1000×2500mm |
Strong absorption, closer grid spacing |
|
35%+ |
2.0mm |
800×2000mm |
Special acoustic needs, structural review required |

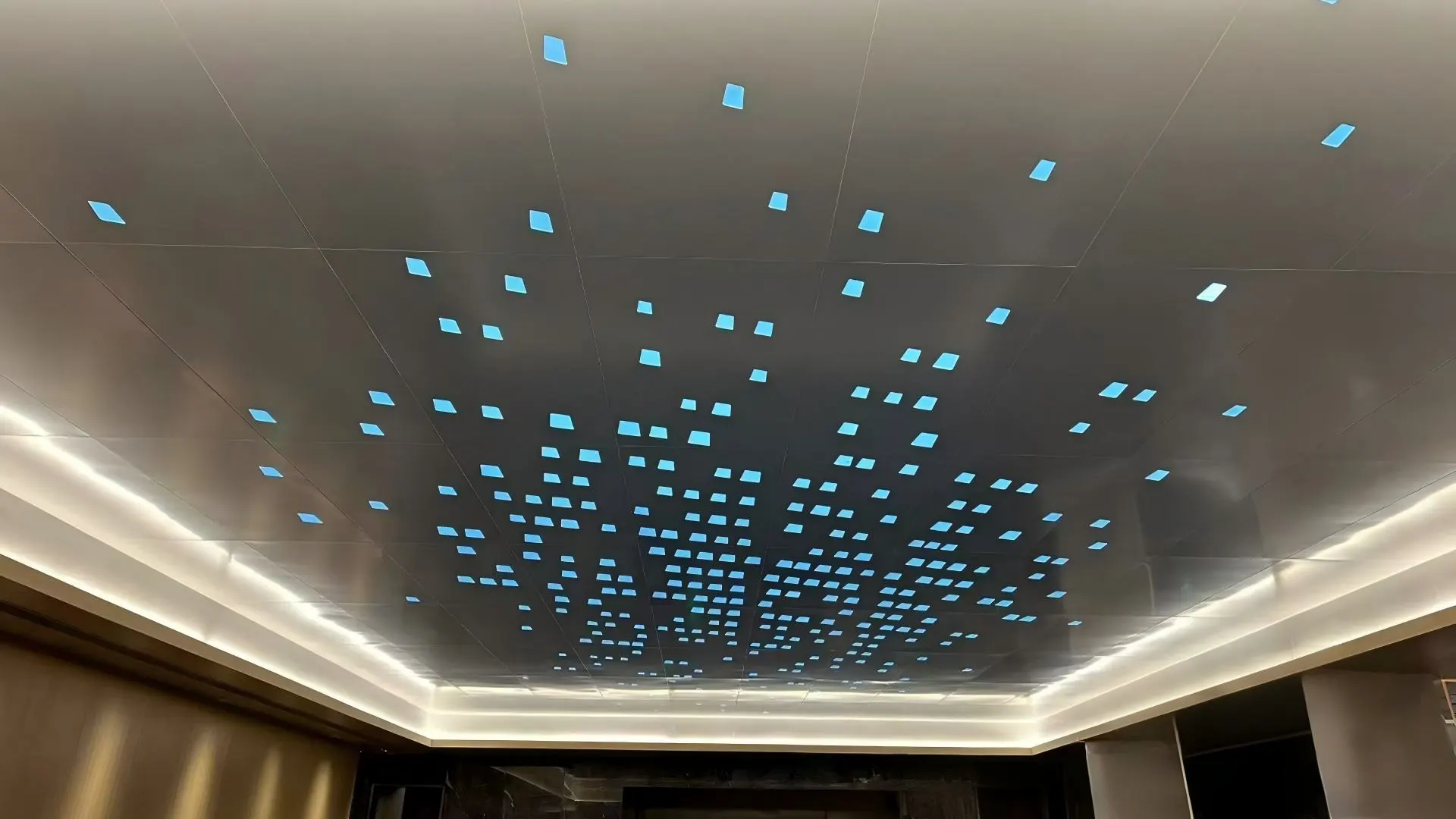

Limits in Pattern Design
Although CNC perforation technology is highly advanced, some工艺 limits remain important for designers:
-
Minimum Hole Size: Mechanical punching minimum Ø1.5mm; laser minimum Ø1.0mm. Smaller holes cost more.
-
Edge Distance: Hole center to panel edge should be at least 2× the hole diameter to avoid edge deformation.
-
Hole Spacing: Center-to-center spacing should be at least 1.5× the hole diameter to prevent tearing between holes.
-
Text Perforation: Stroke width should be no less than 2mm, otherwise strokes may break during perforation.
Surface Treatment & Hole-Edge Corrosion Protection
The hole edges of perforated panels are the most overlooked corrosion weak point. Perforation breaks the surface oxide film, and if not properly treated, hole edges can corrode in humid environments.
-
Perforate Before Coating: The correct sequence is perforate first, then coat, ensuring hole edges are fully covered by the coating.
-
Coating Thickness: PVDF ≥30μm, powder ≥40μm, ensuring uniform coating at hole edges.
-
Coastal Areas: An additional epoxy primer is recommended to improve salt-spray resistance at hole edges.
Installation & Maintenance Essentials
Key points for custom perforated ceiling installation and maintenance:
-
Pre-installed Fleece: Factory-bonding acoustic fleece to panel backs is recommended, allowing direct on-site hanging and avoiding contamination and inefficiency of on-site fleece installation.
-
Pattern Alignment: Continuous patterns across multiple panels must be installed in factory-numbered sequence to ensure pattern continuity.
-
Cleaning: Surface dust can be removed with a vacuum or soft brush; avoid high-pressure water jets, which may damage the acoustic fleece.
-
Access Provision: Lighting and services above perforated ceilings require at least one individually removable access panel.
