Hole Diameter and Perforation Rate Design Principles of Perforated Aluminum Panels and Their Acoustic Impact

Hole diameter and perforation rate are the two most core geometric parameters in perforated aluminum panel design. They not only determine the visual appearance of the panel, but also directly affect the acoustic performance, ventilation performance and structural mechanical properties of perforated aluminum panels. In engineering design, how to reasonably select hole diameter and perforation rate according to the space's acoustic requirements, visual effects and structural requirements is a technical problem that requires comprehensive trade-offs. This article will start from acoustic principles and systematically analyze the influence of hole diameter and perforation rate on the performance of perforated aluminum panels.

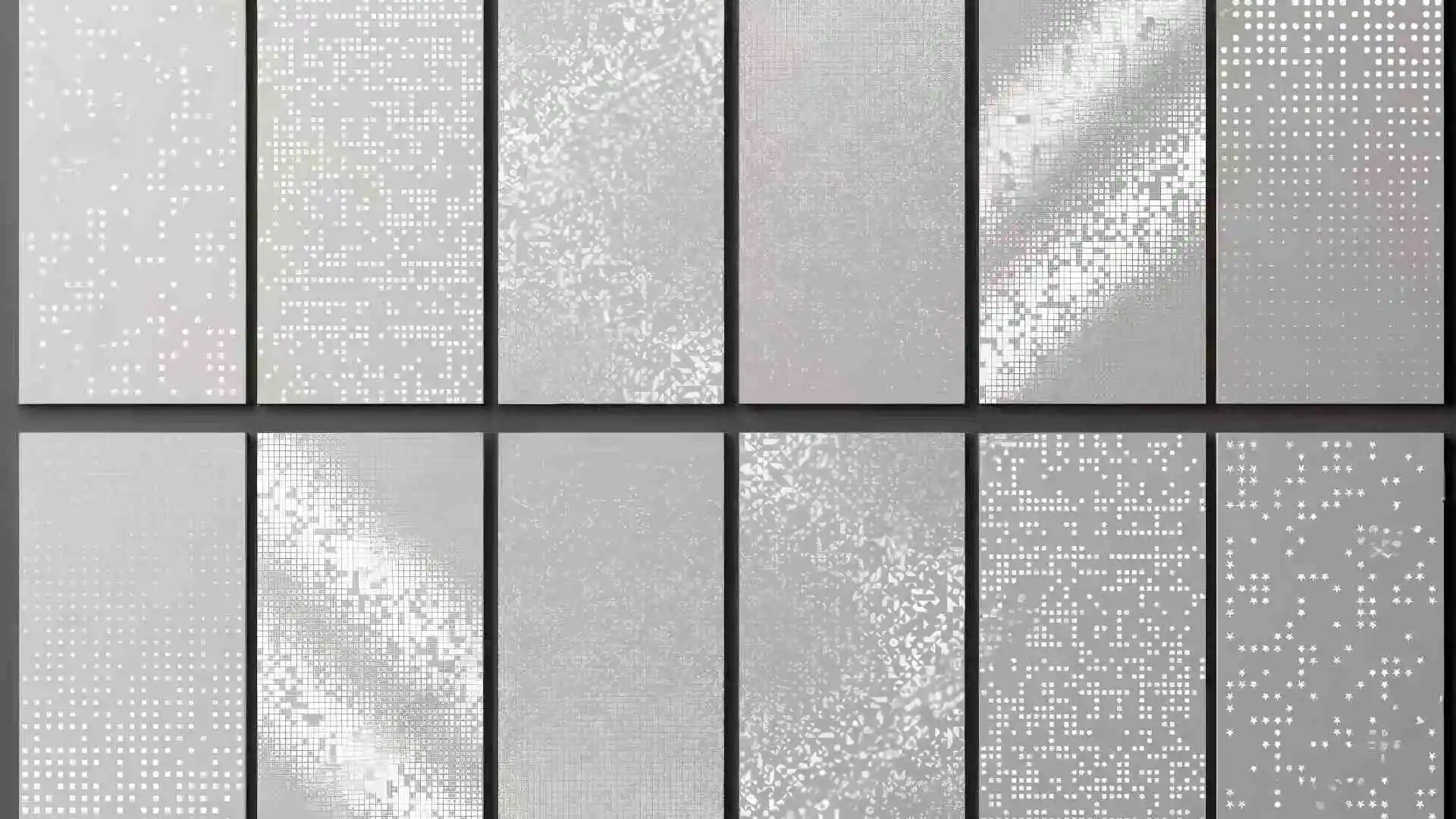

The selection of hole diameter mainly depends on three factors: acoustic performance requirements, visual effect requirements and processing technology limitations. From an acoustic perspective, the smaller the hole diameter, the better the high-frequency sound absorption performance, because small hole diameters correspond to smaller resonance frequency ranges and are more effective in absorbing mid-to-high frequency sound waves. Perforated aluminum panels with 1-2mm hole diameter配合 sound-absorbing cotton have good absorption effect on 1000-4000Hz mid-to-high frequency noise, which is the main frequency range of common noise such as human voice and traffic noise. The larger the hole diameter, the relatively better the low-frequency sound absorption, but the high-frequency sound absorption effect decreases. From a visual perspective, small hole diameters (1-3mm) are almost invisible at normal viewing distance, presenting a delicate metallic surface texture, suitable for spaces pursuing a simple overall sense; medium hole diameters (3-6mm) show clear holes at close range, with industrial aesthetic characteristics; large hole diameters (10mm or more) have strong visual impact and transparency, suitable for designs emphasizing hole patterns. From a processing perspective, the hole diameter should not be less than 0.5 times the sheet thickness, otherwise burrs and deformation are prone to occur during stamping, affecting processing quality.

Perforation rate refers to the percentage of the total area of all holes on the panel to the total panel area, which is a key parameter determining the acoustic performance and ventilation performance of perforated aluminum panels. The higher the perforation rate, the easier it is for sound waves to penetrate the panel and enter the sound-absorbing layer behind, and the better the sound absorption effect; at the same time, the larger the ventilation area, the better the ventilation and heat dissipation performance. But the perforation rate is not the higher the better: too high perforation rate will weaken the structural strength of the panel, requiring corresponding increase in panel thickness or setting reinforcing ribs; too high perforation rate will also lead to excessive visual transparency, affecting the decorative effect. The commonly used perforation rate range in engineering is determined according to functional requirements: purely decorative perforated aluminum panels usually have a perforation rate of 1-5%; perforated aluminum panels with sound absorption as the main function usually have a perforation rate of 15-25%; perforated aluminum panels with ventilation and heat dissipation as the main function can have a perforation rate of 30-50%; perforation rates exceeding 50% are rarely used in actual engineering, because the structural strength of the panel can no longer be guaranteed.

The hole arrangement method also has an important impact on acoustic performance and visual effect. Equilateral triangle arrangement (also called quincunx arrangement) is the most commonly used arrangement method. Holes are staggered at 60-degree angles. This arrangement has the smallest hole spacing at the same perforation rate, the most uniform distribution, the most stable acoustic performance, and the most visually coordinated. Square arrangement (straight arrangement) has holes distributed at right angles, with a strong sense of order and geometry, and is more visually regular, but the acoustic performance is slightly inferior to triangular arrangement, because the diffraction path of sound waves between holes is not uniform. In practical engineering, triangular arrangement is the preferred arrangement for sound-absorbing ceilings and acoustic walls, while square arrangement is more used in decorative perforation design emphasizing geometric order. In addition, there are special arrangement methods such as oblong hole arrangement and irregular hole arrangement to meet specific acoustic directivity or visual modeling requirements.

From the perspective of acoustic calculation, the sound absorption performance of perforated aluminum panels can be estimated through the perforated panel resonance sound absorption theory. According to Professor Ma Dayou's micro-perforated plate theory, when the hole diameter is less than 1mm and the perforation rate is 1-3%, the micro-perforated plate itself has good wide-frequency sound absorption performance without additional sound-absorbing cotton; when the hole diameter is greater than 2mm, the perforated aluminum panel mainly serves as a protective surface, and the sound absorption performance mainly depends on the thickness and density of the sound-absorbing cotton filled behind. In engineering design, acoustic simulation software (such as ODEON, CATT-Acoustic, etc.) is usually used to simulate the reverberation time and sound field distribution of the entire space, and adjust the hole diameter, perforation rate and sound-absorbing cotton thickness according to the simulation results to make the acoustic indicators of the space meet the design requirements. For general office spaces, perforated aluminum ceilings with 15-20% perforation rate, 2-3mm hole diameter, and 50mm thick 32kg/m³ glass wool on the back can usually control the reverberation time at about 0.5 seconds, meeting the acoustic requirements of office spaces.

In structural design, perforation rate and hole diameter also affect the mechanical properties of the panel. Perforation will produce stress concentration at the hole edge, weaken the effective cross-sectional area of the panel, thereby reducing the bending strength and stiffness of the panel. The higher the perforation rate, the greater the strength weakening. According to engineering experience, when the perforation rate is below 10%, the panel strength weakening is about 5-10%, with little impact on the overall structure; when the perforation rate reaches 25%, the strength weakening is about 20-30%, and the panel thickness needs to be appropriately increased; when the perforation rate exceeds 40%, the strength weakening can reach more than 40%, and it is necessary to ensure the structural performance of the panel by increasing the panel thickness, setting reinforcing ribs or adopting honeycomb composite structure. In curtain wall design, the wind load calculation of perforated aluminum panels needs to consider the weakening of the cross-sectional area by the holes, usually calculated according to the effective cross-sectional area. Reasonable hole diameter and perforation rate design should, under the premise of meeting acoustic, ventilation and visual requirements, minimize the loss of structural strength and achieve a balance between function and economy.
