Design Application Cases of Curved Aluminum Baffles in Commercial Complexes

Modern commercial complexes pay more and more attention to spatial experience and artistic atmosphere. Traditional straight-line decoration can no longer meet the pursuit of personalization and artistry in commercial spaces. Curved aluminum baffles have become the new favorite of commercial complex decoration by virtue of their smooth lines, rich modeling capabilities and modern visual effects, and are widely used in atriums, corridors, entrances, elevator halls, ceilings and other areas to create highly memorable commercial spaces.

The atrium is the core space of a commercial complex and the area where curved aluminum baffles are most applied. Atriums usually have high floor heights and open spaces, which are places where people gather and visual focus. Large-span curved aluminum baffle ceilings can create flowing visual effects, guide people flow, and weaken the open feeling brought by high floor heights. Taking a large commercial complex in Shanghai as an example, its atrium adopts S-shaped wavy curved aluminum baffle ceiling. The baffles extend from the fourth-floor roof to the first-floor ground, forming a huge flowing curved surface. The color gradually changes from white at the top to light gold at the bottom, simulating the effect of waterfall flow, becoming the iconic check-in point of the entire mall. The curved aluminum baffles used in this project have a bottom width of 80mm, height of 150mm, thickness of 1.2mm, fluorocarbon spraying, the longest single arc reaches 12 meters, formed by CNC stretch bending process. The radian of each baffle is accurately calculated, and the lines are smooth after installation without break points, forming rich light and shadow changes under the illumination of lights. The atrium of a commercial complex in Guangzhou adopts annular radial curved aluminum baffles. Centered on the atrium lighting roof, the curved baffles radiate around like blooming petals. The height of the baffles gradually decreases from the center to the surroundings, forming a layered dome effect, which not only solves the acoustic problem of large spaces, but also has strong visual impact.

Commercial corridors are the main passages for people to move. Traditional straight corridors are easy to make people feel tired. Curved aluminum baffle ceilings can guide people flow through curves and increase the interest of the space. The corridor of a shopping center in Shenzhen adopts curved aluminum baffles with gradual radian. Straight sections of the corridor use straight baffles, which transition to curved baffles at turns. The radian of the baffles changes naturally with the bending of the corridor, and people walking in it seem to enter a flowing space without a stiff turning feeling. The curved baffles of this project also integrate linear lighting. LED light strips are hidden on the side of the baffles, and the light shines along the curved baffles, forming continuous light strips, which not only play a lighting role but also strengthen the flowing feeling of the curve. The corridor of an internet-famous commercial block in Chengdu adopts curved aluminum baffles with scattered heights. The baffles undulate in waves, with heights ranging from 200mm to 800mm, and the colors adopt macaron gradient colors, creating a lively and dreamy space atmosphere, attracting a large number of young people to take photos and check in.

The main entrance is the facade of a commercial complex, and curved aluminum baffles can create an entrance space with a sense of ceremony. The main entrance of a commercial complex in Hangzhou adopts a large-span curved aluminum baffle canopy, which overhangs 8 meters outward. The curved baffles extend from the building facade to the bottom of the canopy, forming a complete curved surface. The silver-gray metal texture of fluorocarbon spraying is simple and atmospheric. When the lights hidden in the baffles are lit at night, the entire entrance looks like a luminous time tunnel with strong identification. The entrance of a commercial complex in Beijing adopts double-layer curved aluminum baffle ceiling. The outer layer is dark baffles with large radian, and the inner layer is light baffles with small radian. The two layers of baffles are arranged staggered to form rich light and shadow layers. The curved baffles at the entrance extend from the outdoor to the indoor lobby, realizing natural transition between indoor and outdoor spaces.

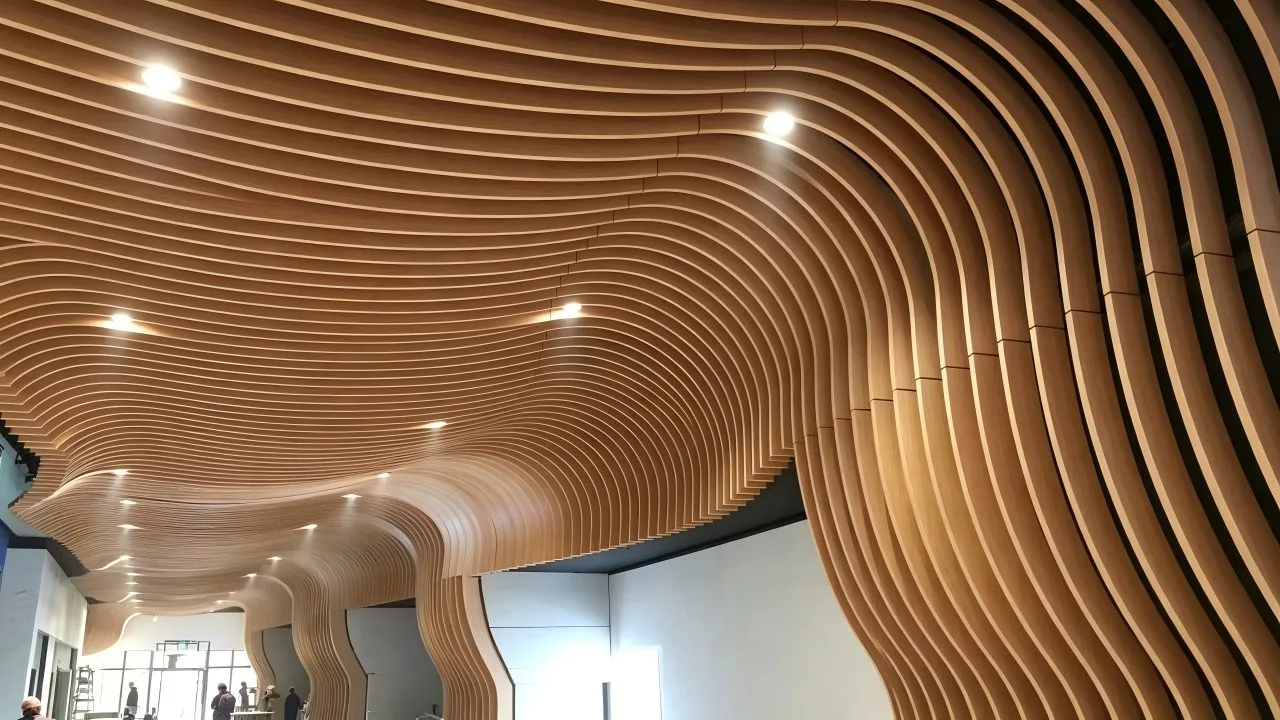

Elevator halls and escalator areas are traffic nodes in commercial spaces and are also common areas for curved aluminum baffles. Escalator areas are usually multi-storey voids, and curved aluminum baffles are arranged along the slope of the escalator to form a continuous decorative surface, naturally connecting different floors. The escalator area of a shopping mall in Nanjing adopts curved aluminum baffles parallel to the escalator. The baffles bend naturally with the rise of the escalator, and the color adopts warm wood grain, which weakens the cold feeling of metal escalators and makes the space warmer. The curved aluminum baffle ceiling of elevator halls usually adopts circular or elliptical shapes, arranged around the elevator hall to form a centripetal feeling and relieve anxiety when waiting for elevators. The elevator hall of a high-end shopping mall in Wuhan adopts a circular curved aluminum baffle ceiling. The baffles spread annularly from the elevator door to the surroundings, with a large crystal lamp installed in the middle, luxurious and atmospheric.

Design key points of curved aluminum baffles in commercial complexes: first is scale control. The floor height of commercial spaces is usually 4-6 meters, and atrium voids can reach 20-30 meters. Spaces of different scales should choose different specifications of baffles. Large spaces choose large-specification baffles, small spaces choose small-specification baffles, with coordinated proportion; second is lighting integration. Commercial space lighting is very important. Curved baffles are best combined with linear lighting, which can not only achieve the effect of seeing light without seeing lamps, but also strengthen the curve shape through lighting; third is color matching. Commercial space colors can be rich, but it is best not to exceed 3 main colors in the same area to avoid clutter; fourth is maintenance consideration. There are many equipment in commercial spaces with frequent maintenance. Curved baffles should adopt detachable installation systems to facilitate later maintenance of top equipment; fifth is acoustic treatment. There are many people in commercial spaces with loud noise. Sound-absorbing cotton should be added to the back of curved baffles to reduce reverberation time and improve the acoustic environment.

Although the cost of curved aluminum baffles is relatively higher than straight baffles, the spatial experience and artistic value they bring are incomparable to straight baffles. A successful curved aluminum baffle design can become the memory point of a commercial project and enhance the commercial value of the project, which is why more and more commercial projects choose curved aluminum baffles.
