Detailed Explanation of Aluminum Suspended Ceiling Installation Technology and Keel System Construction

The installation of aluminum suspended ceiling is a systematic project involving multiple links such as measurement and setting out, keel erection, panel installation, and terminal coordination. Any omission in any link may lead to uneven ceiling surfaces, misaligned joints, or even potential safety hazards. Quality‑qualified products can deliver perfect decorative effects only when combined with standardized construction techniques. This paper analyzes in detail the standard construction procedures and key installation technical points for various aluminum suspended ceiling systems.

Construction preparation is the prerequisite for guaranteed installation quality. First, conduct a site survey to confirm basic conditions including ceiling clear height, positions of structural beams, and routing of electromechanical pipelines. Cross‑verify these conditions against design drawings, and resolve on‑site conflicts in a timely manner. Strict material acceptance shall be performed upon material delivery to site: verify whether the specifications, thickness and surface treatment of aluminum panels comply with design requirements, and inspect for defects such as scratches, deformation and color difference. Check whether auxiliary materials (keels, hangers, suspension rods and other accessories) have matching specifications, and confirm their galvanized coatings are intact and free of rust. In terms of tool preparation, standard tools including laser level, impact drill, hand drill, rivet gun, special wrench, tape measure and ink fountain shall be available. For large‑scale projects, lifting platforms or scaffolding shall also be prepared.

Line‑snapping positioning is the critical initial installation procedure. Based on the designed elevation, use a laser level to mark the finished‑surface elevation line of the ceiling along surrounding walls, with tolerances controlled within ±2 mm. Next, mark suspension‑rod anchor points and keel layout lines on the overhead structural slab according to panel dimensions and keel spacing. Suspension‑rod spacing shall generally not exceed 1200 mm, and the distance from any suspension rod to the end of the main keel shall be no more than 300 mm. Where suspension‑rod length exceeds 1500 mm, anti‑bracing components shall be fitted to avoid ceiling‑system swaying. For shaped and irregular ceilings, lay out a 1:1 full‑size mock‑up on the ground; verify profile dimensions and curvatures before performing overhead positioning.

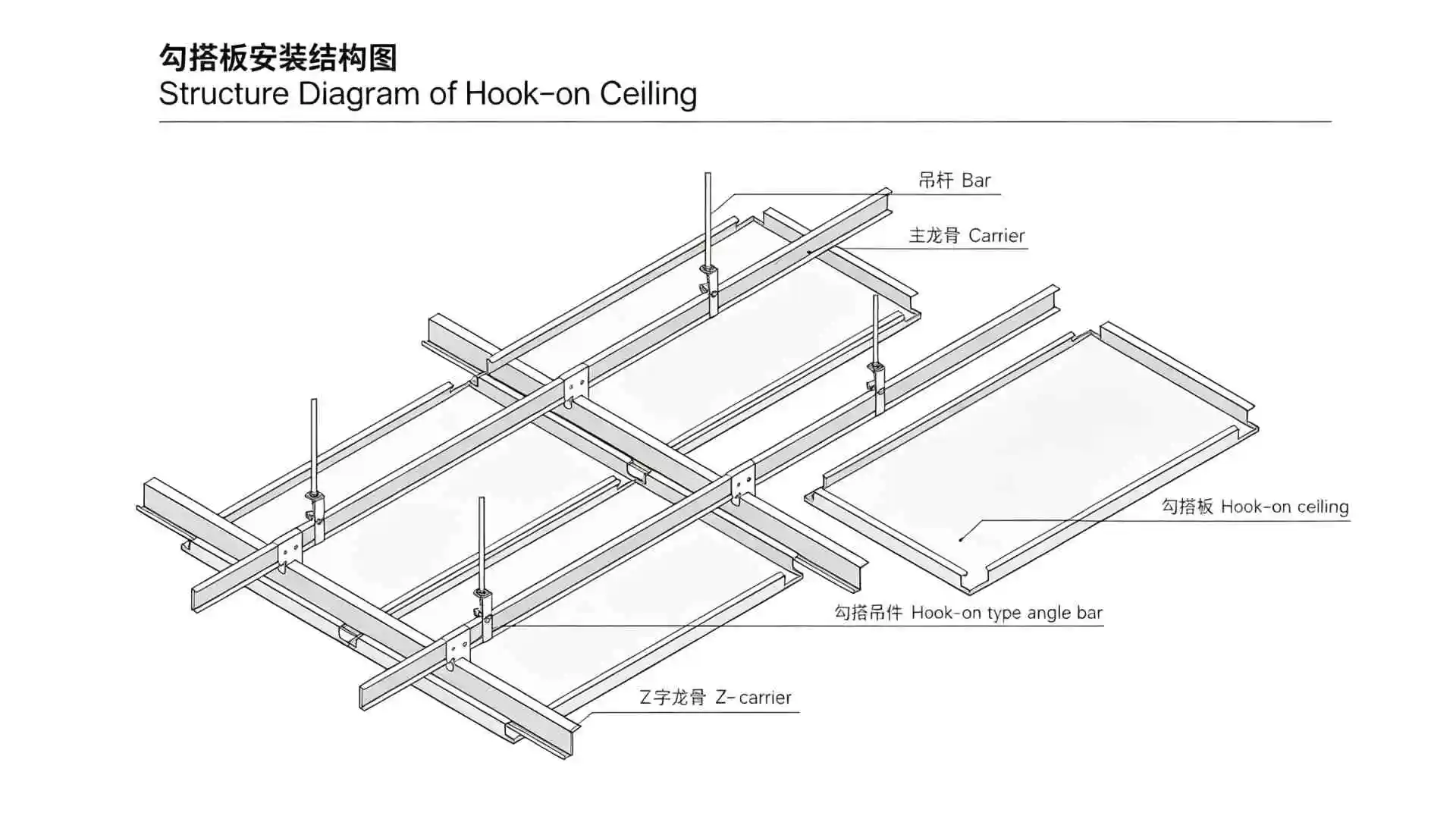

Keel‑system installation forms the structural foundation of the whole ceiling. The keel assembly for aluminum suspended ceilings normally comprises three tiers: suspension rods, load‑bearing main keels, and face‑sub‑keels. Suspension rods adopt φ8 or φ10 galvanized threaded rods, fixed to the structural floor slab via expansion bolts. During installation, ensure suspension rods remain vertical and all nuts are fully tightened. Main keels are typically U‑shaped or C‑shaped galvanized light‑steel keels, whose specifications shall be selected according to ceiling load; commonly adopted sizes are 50×15×1.2 mm or 60×27×1.2 mm. Main‑keel spacing shall not exceed 1200 mm. After installation, pull reference lines to adjust flatness and camber. For ceilings with spans over 4 m, set camber values between 1/1000 and 3/1000 of the corresponding span. Secondary keels vary for different panel systems: the exposed square‑panel system uses T‑shaped aluminum‑alloy secondary keels directly clipped onto main keels; the concealed square‑panel system uses dedicated triangular or slotted keels; strip‑panel systems adopt special clip‑tooth keels matched to strip‑section profiles.

Panel installation constitutes the core procedure determining final visual performance. Prior to panel mounting, re‑check keel flatness and fastening integrity, and confirm accurate pre‑reserved cut‑out positions for electromechanical terminals (lamps, air outlets, sprinklers, smoke detectors and other fittings). Installation of exposed square panels is relatively straightforward: rest panels directly onto the flanges of T‑shaped keels. Handle panels carefully to prevent surface scratches, install sequentially in one direction, and inspect flatness with a straightedge after completing each row. For concealed square‑panel installation, evenly clip panel folded edges into the grooves of triangular keels, ensuring full engagement on all four sides. After fitting, gently push each panel by hand to rule out looseness. For strip‑panel installation, start from one end and sequentially press panel clip‑edges into the clip teeth of dedicated keels. Tap each fitted piece lightly with a rubber mallet to secure full seating, and maintain uniform gaps between adjacent strips. The final strip panel is usually cut to fit actual site dimensions before installation.

Treatment of special joints and interfaces is critical for demonstrating installation workmanship. Edge trims (corner mouldings) shall be fitted at ceiling‑to‑wall junctions. Trims shall closely abut wall surfaces, with tight joints and precise square internal‑external corners. Ceiling cut‑outs (for lamps, air outlets, access panels, etc.) shall be processed with dedicated cutting tools to achieve clean, burr‑free edges. Reinforcing frames shall be installed around cut‑out peripheries to prevent panel deformation. Large‑area ceilings shall be provided with expansion joints at intervals of 10‑15 m to accommodate thermal deformation, with proper closure details applied at each joint. Installation of curved panels for shaped ceilings shall follow pre‑assembly numbering sequences to achieve smooth, seamless joints.

Finished‑product protection and cleaning mark the concluding construction stages. Upon completion of installation, promptly remove dust, fingerprints and construction stains from ceiling surfaces using soft cotton cloths and neutral detergent. Strong acids, strong alkalis, steel wool and other abrasive hard tools are strictly forbidden. Erect protective barriers over finished ceiling zones to avoid collision and contamination from subsequent trades. Before hand‑over, carry out comprehensive inspection: check panel flatness with a 2‑meter straightedge, with permissible deviation ≤2 mm; joint step‑height deviation ≤0.5 mm; joint straightness tolerance ≤1.5 mm; overall ceiling elevation tolerance ≤±5 mm. Meanwhile, verify keel‑system fastening integrity; panels shall be free of looseness, deformation and color‑shade discrepancy, and electromechanical terminals shall align neatly with ceiling panels.

Special reminder: different aluminum suspended ceiling systems carry system‑specific installation requirements. Prior to construction, thoroughly review installation manuals and component detail drawings supplied by the supplier. Where necessary, arrange on‑site technical guidance from supplier‑appointed technicians. For ceiling works in large‑scale public‑building projects, engage professional installation teams with proven experience in comparable projects to guarantee engineering quality and construction safety.
