How to Install Open Cell Aluminum Grid Ceilings？

Open cell aluminum grid ceilings look simple to install, but poor construction is the most common cause of sagging, uneven grids, misaligned joints and rattling noise. A professional installation ensures the ceiling stays flat, square and rattle-free for its full service life. This guide covers the complete standard construction process, quality control checkpoints, common mistakes to avoid and acceptance criteria for aluminum grid ceiling projects.

Pre-Installation Preparation

Good preparation prevents 80% of common installation issues:

1. Site condition check: All above-ceiling MEP works (pipes, ducts, wiring, sprinklers) must be complete and pressure tested. Floor finishing should be done, and indoor humidity should be below 80% to avoid material warping.
2. Material inspection: Check all grid profiles, keels, hangers and accessories for damage, bending or color difference. Sort materials by size and color before installation.
3. Tool preparation: Laser level, ink line, impact drill, screwdriver, tin snips, rivet gun, plumb bob and measuring tape.
4. Drawing review: Confirm grid layout, light positions, air outlets and special openings before starting work.

Step-by-Step Installation Process

1. Setting Out & Marking

• Use a laser level to mark the finished ceiling elevation line on all walls, columns and around the room perimeter.
• Mark the main keel layout line on the ceiling slab, with standard hanger spacing at 1000-1200mm intervals.
• Mark grid center lines according to the approved layout, starting from the center of the room and working outwards to ensure symmetrical border panels.

2. Install Hanger Rods

• Drill holes for expansion bolts at marked hanger points, minimum embedment depth 40mm into concrete slab.
• Install galvanized steel hanger rods (minimum diameter 6mm). For ceilings over 3m high or heavy duty systems use 8mm rods.
• Hanger spacing must not exceed 1200mm; add extra hangers within 150mm of all light fixtures, air outlets and openings.
• All hangers should be treated with anti-rust paint at cut ends.

3. Install & Level Main Keels

• Hang main keels on hanger rods and fix with connecting clips.
• Pull a horizontal guide line across the room, and adjust hanger nuts to level the main keels.
• For rooms over 4m span, add a slight upward camber of 1/200 to 1/300 of room span to prevent mid-span sagging.
• Connect main keel sections with matching splice plates, and ensure joints are staggered.

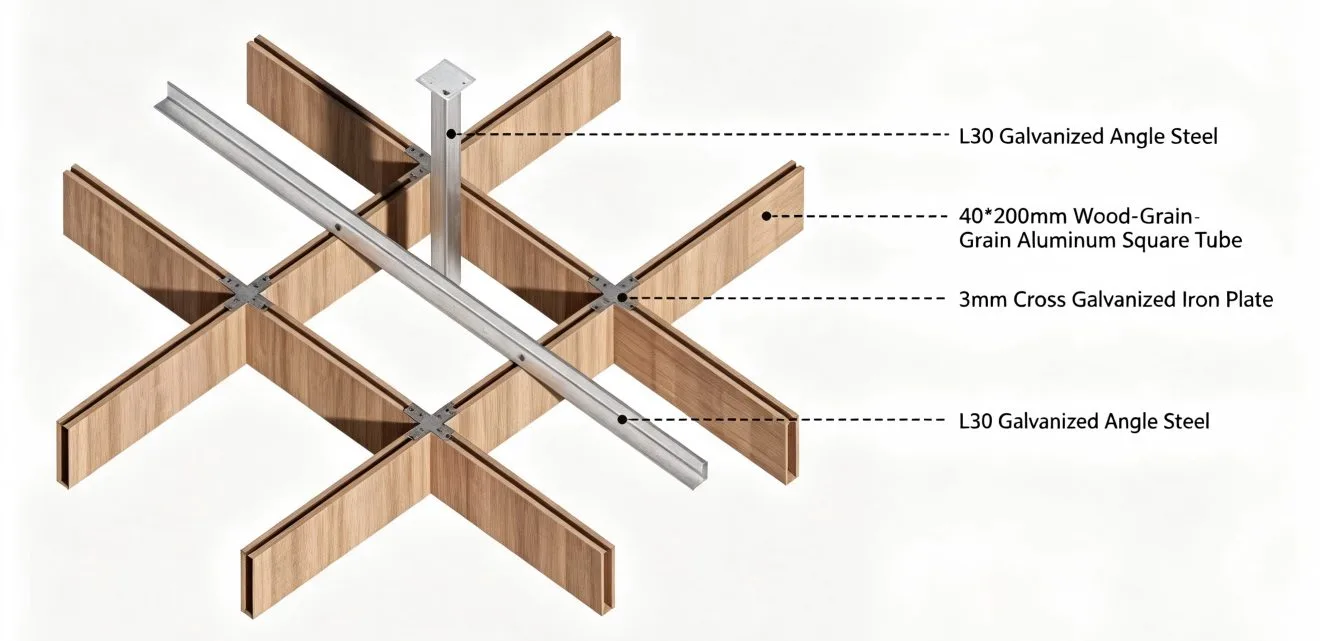

4. Install Cross Keels & Edge Trim

• Fix cross keels perpendicular to main keels at the grid module spacing, clipping securely into main keel connectors.
• Check that all keel intersections are flush and secure.
• Install L-shaped edge trim along walls and columns, fixed with screws at 300-400mm intervals, and sealed with neutral silicone if required.

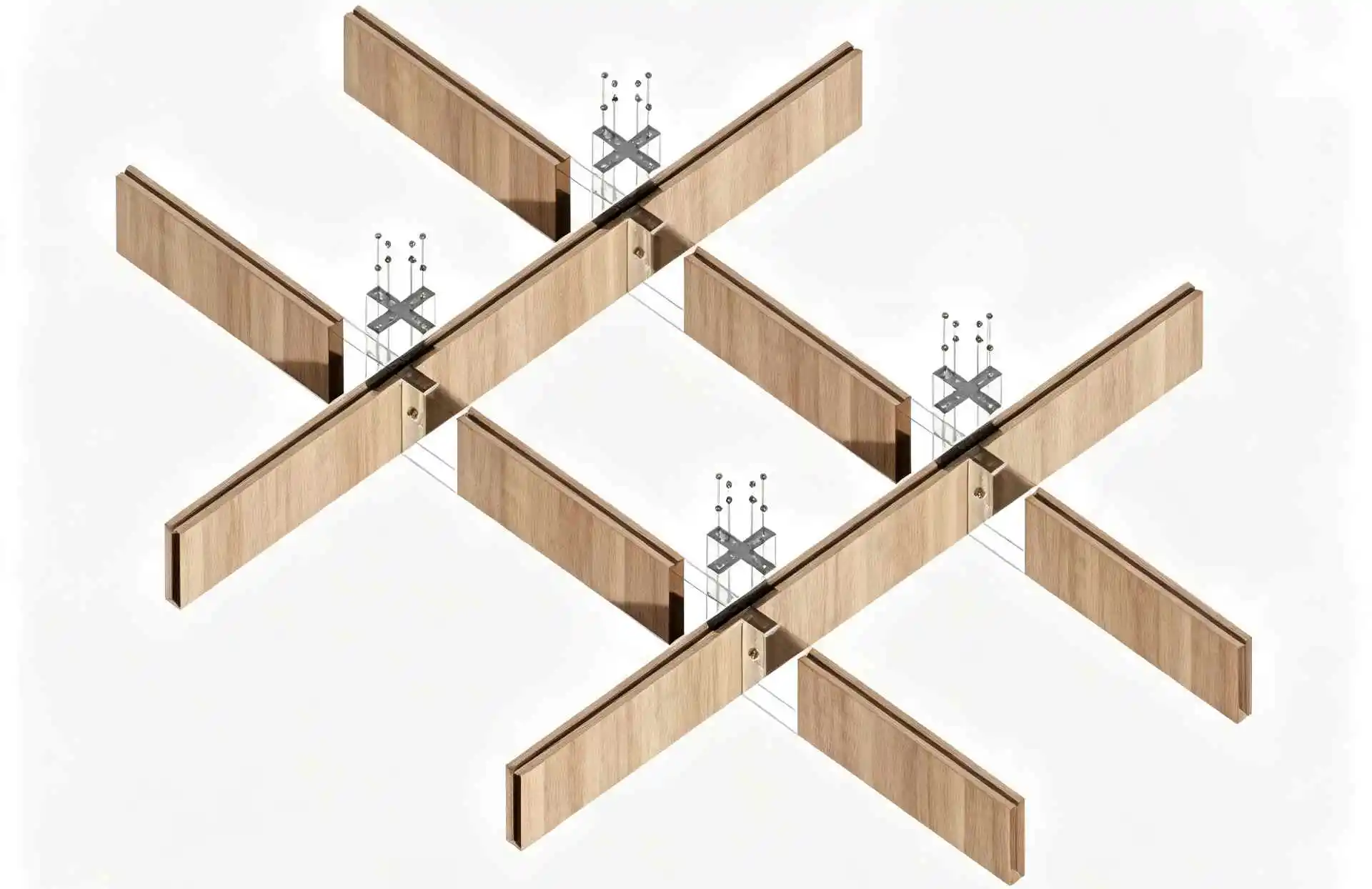

5. Pre-Assemble Grid Units

• Most aluminum grid ceilings are supplied as pre-cut main and cross bars. Assemble grid units on the floor before lifting.
• Interlock main and cross bars to form square cells, checking that all joints are fully seated.
• Measure diagonal of each grid unit to ensure squareness; diagonal error must not exceed 1mm per meter.

6. Install Grid Panels

• Lift pre-assembled grid units up to the keel system and clip into place, starting from the center of the room and working outwards.
• As you install, pull a long straight edge across the ceiling to check flatness, adjusting hanger height as needed.
• Do not force or bend grid bars into place; if a bar does not fit, check keel alignment first.

7. Fit Borders & Openings

• Cut border panels to fit around walls, columns and penetrations, using tin snips or a fine tooth saw.
• Fit custom trim around light fixtures, air diffusers, sprinklers and access panels, ensuring clean straight edges.
• All cut edges should be touched up with matching paint to prevent corrosion.

8. Final Cleaning & Protection

• Peel off protective film from all grid profiles.
• Wipe clean with a soft dry cloth to remove fingerprints and dust.
• Cover finished ceiling with plastic film if other construction work continues below to prevent damage.

Key Quality Control Points

1. Flatness control: Maximum surface flatness tolerance is 2mm over a 2m straight edge. Always pull through lines across the full room during installation.
2. Grid squareness: All grid cells must be square; joint alignment tolerance is 1mm. Check diagonals regularly as you install.
3. Structural security: All hangers and keel connections must be tight. Gently shake the grid after installation; there should be no rattling or movement.
4. Camber check: For spans over 4m, ensure the center is slightly higher than edges to prevent visual sag.
5. Edge finish: All wall and column borders must be straight, tight and even, with no gaps over 1mm.

Common Installation Mistakes & How to Avoid Them

1. Hanger spacing too wide: Spacing over 1200mm causes visible sagging. Always add extra hangers for heavy fixtures.
2. No camber for large spans: Even perfectly level keels will sag slightly in the middle over time. Always add 5-10mm upward camber for spans over 4m.
3. Forcing bent bars: If a grid bar will not clip in, do not hammer or force it. This causes permanent bending and future rattling. Adjust keel position instead.
4. Hanging lights directly on grid: Never fix light fixtures or heavy equipment directly to grid bars. All fixtures over 1kg must have their own independent hangers fixed to the slab.
5. Starting installation from a corner: This causes uneven border panels and misaligned grids. Always start from the room center and work outwards.
6. Skipping anti-rust treatment: Cut hanger rods and keel ends will rust over time and stain the ceiling. Always touch up all cut metal surfaces.

Integrated Light & Service Installation

• LED panel lights that match grid module size can sit directly on the keel frame.
• For non-standard light sizes, add additional cross keels around the opening to support the fixture.
• Align sprinklers, smoke detectors and speakers to the center of grid cells for a clean professional look.
• Air diffusers should be sized to match grid modules where possible, with custom trim for non-standard sizes.

Acceptance Standards

Final visual check: The ceiling should look uniformly flat, all grid lines straight and square, no visible damage, no rattling when lightly touched, all fixtures neatly aligned.

Post-Installation Maintenance

• Dust the ceiling annually with a soft brush or vacuum with brush attachment.
• Do not hang anything from the grid bars.
• If a grid bar gets bent, it can be gently bent back by hand or replaced individually without removing the whole ceiling.
• Check hanger tightness once every 5 years for high traffic public spaces.

Frequently Asked Questions

Q: How long does it take to install aluminum grid ceiling?

A: A professional team can install 15-25 square meters per person per day, around 2-3 times faster than gypsum ceiling.

Q: Can grid ceilings be installed in high humidity areas like bathrooms?

A: Yes. Aluminum is 100% waterproof and will not sag or grow mold. Use stainless steel hangers and powder coated grid for wet areas.

Q: Can I install grid ceiling over an existing ceiling?

A: Yes. The suspended hanger system can be fixed directly to the existing ceiling slab, making it ideal for renovation projects.

Q: What do I do if a grid bar gets bent after installation?

A: Individual grid bars can be unclipped and replaced without removing the whole ceiling. Keep spare bars from the same production batch for color matching.
