How to Install Seamless Tight-Joint Aluminum Ceilings

Introduction

Seamless tight-joint aluminum ceilings deliver a premium monolithic visual effect, but their installation requires far higher precision than standard exposed-grid metal ceilings. Many projects fail to achieve the intended seamless finish due to improper installation techniques, inadequate leveling or poor joint control, even when using high-quality panels.

This guide breaks down the full installation process, critical quality control points, common pitfalls and acceptance standards specific to seamless aluminum ceiling systems, helping contractors and project owners achieve consistent, gap-free results for high-end commercial and public building projects.

Pre-Installation Preparation for Seamless Tight-Joint Ceilings

Proper preparation is the foundation of a flawless seamless ceiling finish, as even minor misalignment in the support structure will become visible in the final tight-joint surface.

1. Material inspection: Verify all panels have consistent dimensions with ±0.1mm edge tolerance, no edge burrs or deformation. Sort panels by production batch to avoid minor color differences between batches.
2. Tool preparation: Use high-precision laser levels (±0.2mm accuracy) for framework leveling, plus professional suction cup tools for panel handling to avoid damaging panel edges.
3. Site condition check: Confirm the ceiling cavity structure can support the load, with all MEP (mechanical, electrical, plumbing) works completed and pressure tested before ceiling installation begins.
4. Temperature acclimation: Allow panels to acclimate to the site ambient temperature for 24 hours before installation to minimize post-installation thermal expansion and contraction gaps.

Step-by-Step Installation Process for Seamless Aluminum Ceilings

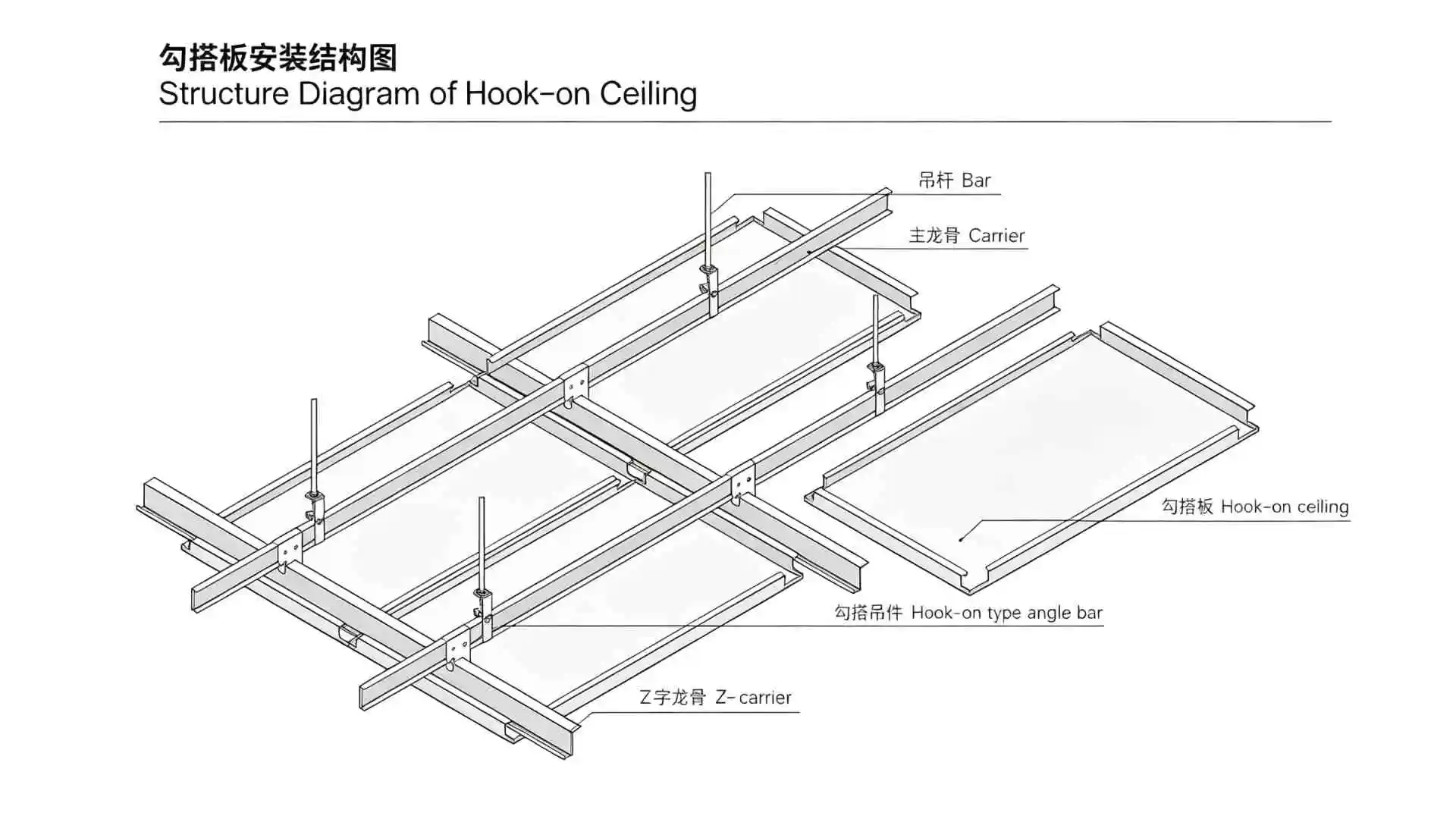

1. Suspension Rod & Main Keel Installation

Install galvanized steel suspension rods at 1000mm intervals, then mount main U-shaped keels and adjust height using the laser level. Ensure main keel flatness is within ±0.2mm across the entire installation area — this is the most critical step for a seamless final finish.

2. Hidden Secondary Keel Mounting

Install dedicated hidden secondary keels perpendicular to the main keels, with spacing matched exactly to panel dimensions. The hidden keel design eliminates visible grid lines, while precision clip connectors ensure consistent alignment between adjacent keel sections.

3. Panel Placement & Alignment

Starting from the center of the ceiling and working outward, lift panels into place using suction cup tools and clip them onto the hidden keel system. Adjust each panel edge by 0.1mm increments to ensure uniform joint width across the entire surface, never forcing panels into place as this will cause edge deformation.

4. Integrated Component Installation

Cut openings for lighting fixtures, air vents and fire sprinklers using precision CNC cutting tools to ensure clean, straight edges. Mount all functional components flush with the ceiling surface to maintain the continuous seamless appearance.

5. Final Adjustment & Inspection

Once all panels are installed, perform a full flatness check across the ceiling using a straightedge and feeler gauge. Adjust any misaligned panels or high/low points before final project sign-off.

Critical Quality Control Points for Seamless Joint Effect

To achieve the signature near-invisible joint effect of high-end seamless ceilings, contractors must focus on three non-negotiable quality control metrics:

1. Joint gap consistency: All joints must be ≤0.3mm wide with no visible variation between different panel intersections. Uneven joint width is the most common cause of poor seamless ceiling appearance.
2. Surface flatness: Overall ceiling flatness must be ≤0.3mm per meter, with no lipping (height difference) between adjacent panel edges. Even 0.5mm of height difference will create a visible shadow line that breaks the monolithic effect.
3. Thermal expansion allowance: Leave 0.2mm of micro expansion gap at panel edges for indoor installations, and 0.5mm for semi-outdoor areas, to prevent panel buckling or joint widening due to temperature changes.

Common Installation Mistakes That Ruin Seamless Effect
Mistake 1: Skipping precision keel leveling

Many installers use standard spirit levels instead of laser levels for keel alignment, resulting in minor height differences that become highly visible once the tight-joint panels are installed. Even 0.3mm of keel misalignment will create a noticeable shadow line across the finished ceiling.

Mistake 2: Forcing panels to fit

If panels are slightly misaligned, forcing them into place will bend the panel edge, creating an uneven joint that cannot be corrected. Panels should slide into position with minimal force — if they do not fit, adjust the keel alignment instead of forcing the panel.

Mistake 3: Ignoring batch color differences

Panels from different production batches may have very subtle color variations that are invisible when viewed individually, but become noticeable when installed side by side in a tight-joint seamless layout. Always install panels from the same batch in a single continuous area.

Mistake 4: Incorrect panel removal during maintenance

Improper panel removal can bend adjacent panel edges, ruining the tight joint fit. Always use professional suction cup tools to lift panels straight down, never pry panels from the joint edge as this will damage the mating edge of the adjacent panel.

Post-Installation Acceptance Standards for Tight-Joint Ceilings

Professional commercial projects should verify the following metrics before accepting a seamless ceiling installation:

• Joint gap width: ≤0.3mm across all joints, with no more than 0.1mm variation between joints
• Surface flatness: ≤0.3mm per meter, measured with a 2m straightedge and feeler gauge
• Edge height difference: ≤0.2mm between any two adjacent panels
• No visible scratches, dents or coating damage on panel surfaces
• All integrated components sit flush with the ceiling surface with no uneven gaps around openings

Maintenance Tips to Preserve Seamless Appearance Long-Term

To keep the seamless finish looking consistent over time:

1. Use only soft microfiber cloths for cleaning, never abrasive scrubbers that can damage panel edges
2. Always use suction cup tools for panel removal during maintenance, avoid prying at joints
3. Replace panels with units from the same original batch to maintain color and edge tolerance consistency
4. Inspect joint condition annually in areas with large temperature fluctuations, adjusting any panels that have shifted due to thermal movement

Frequently Asked Questions

Q: Is seamless ceiling installation more difficult than standard grid ceilings?

A: Yes. Seamless tight-joint ceilings require 30-40% more installation time than standard exposed-grid ceilings, due to the higher precision required for keel leveling and joint alignment. Installers need specific training to achieve consistent seamless results.

Q: Can a single damaged panel be replaced without ruining the surrounding seamless effect?

A: Yes, if removed correctly using suction cup tools. Replacement panels with matching dimensional tolerance will fit seamlessly into the existing layout, with no visible difference from the original installation.

Q: How long does it take to install 1000 sqm of seamless aluminum ceiling?

A: For a standard rectangular space with minimal penetrations, a professional team of 4 installers can complete 1000 sqm of seamless ceiling installation in 8-10 days, including final adjustment and quality checks.
