Lighting Integration of Ceiling Aluminum Baffles: Design Scheme of Linear Lighting System

In modern ceiling design, lighting is no longer a simple lighting function, but has become an important element of space design. Because of its strip structure, aluminum baffle ceiling is particularly suitable for integrating linear lighting system, realizing the effect of seeing light without seeing lamps, perfectly integrating lighting and ceiling, enhancing the modern sense and premium sense of space. Aluminum baffle plus linear light has become the standard configuration for ceilings in public spaces such as offices, shopping malls, hotels, airports.

Integrating linear lighting with aluminum baffle ceilings has many advantages. First is good visual effect, lamps are hidden between or inside baffles, can't see the lamp itself, only see soft light, ceiling is simple and neat, no messy feeling of exposed lamps; second is good lighting effect, linear light is continuous surface light source, uniform and soft light, no glare, higher comfort than traditional point light source lighting; third is rich layers, can create rich spatial layers through different light colors, angles, brightness, highlight key areas; fourth is convenient installation, linear lights can be integrated with aluminum baffles, installed together with baffles, no need for separate hole opening, fast construction; fifth is convenient maintenance, lamps can be disassembled and replaced separately, without damaging the ceiling.

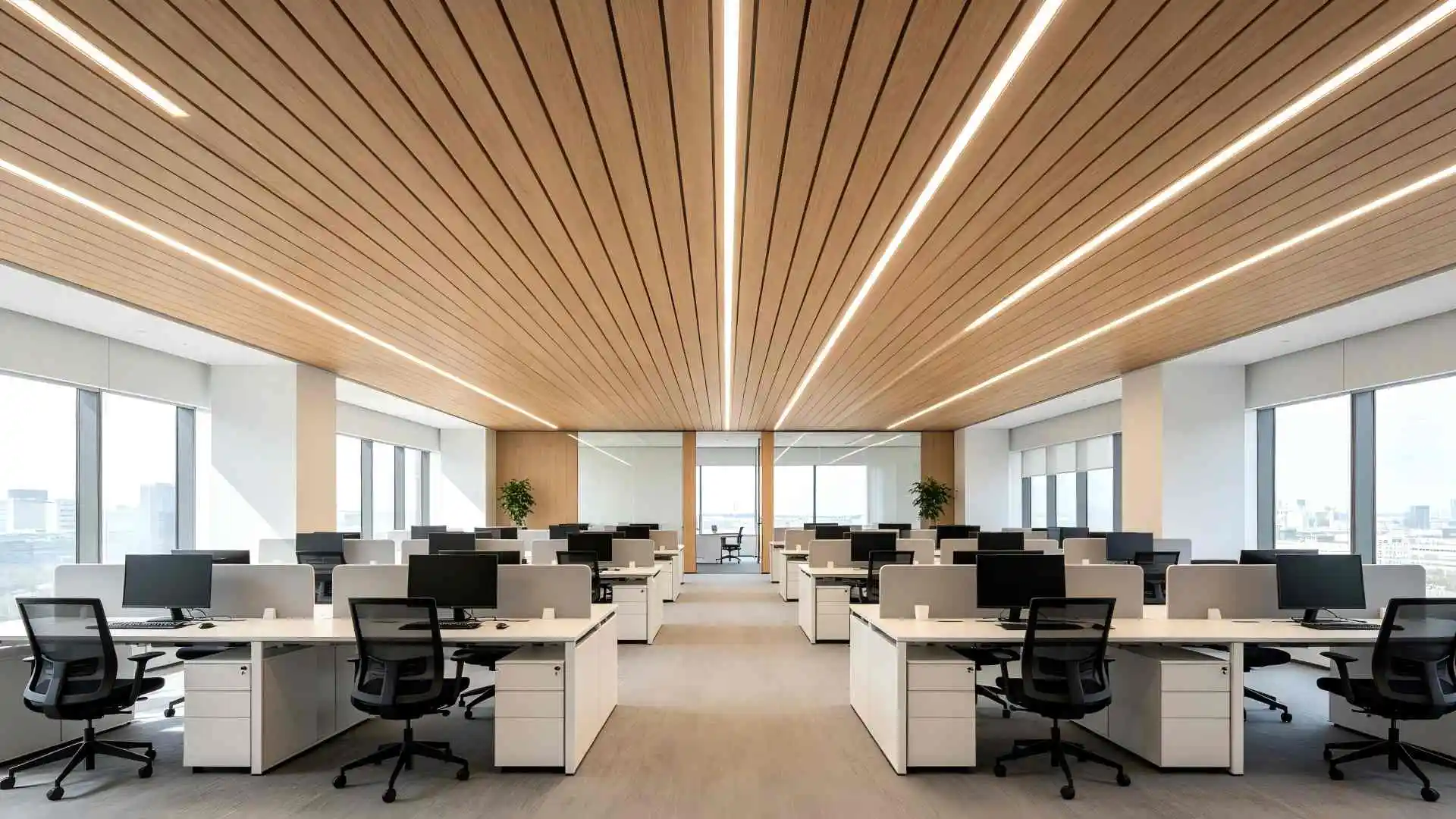

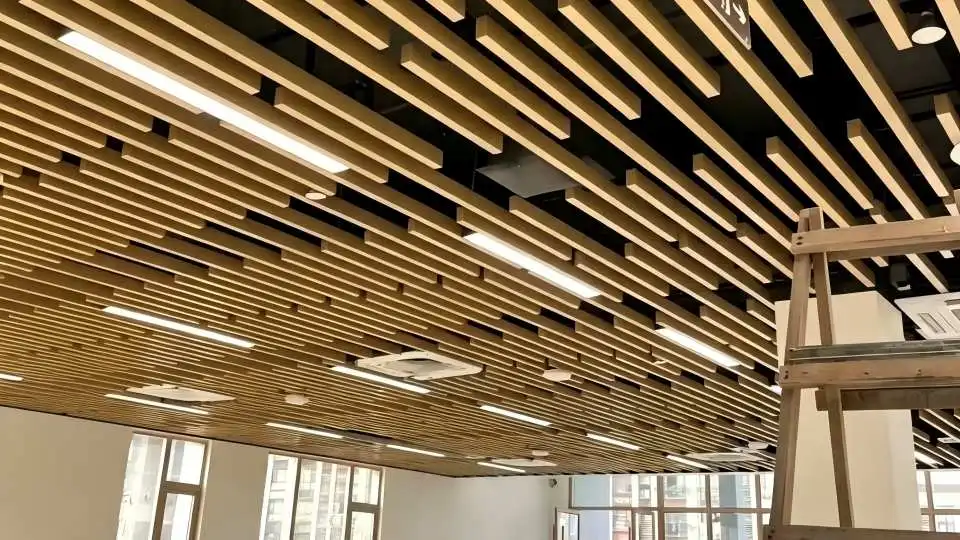

There are five common linear lighting integration methods. The first is gap installation between baffles, which is the most commonly used method. Install linear lights in the gaps between two baffles, lamp width is consistent with gap width, lamp surface is flush with baffle bottom, or hidden in the gap to shine downward, this method is the easiest to install, no need to customize baffles, standard baffles can be used, light shines down from the gap, forming continuous light strips, simple and modern effect. The second is side installation on baffles, install linear lights on the side of baffles, light shines to the side or obliquely downward, washing adjacent baffles or walls, forming wall washing effect or atmosphere light, this way the light is soft, not dazzling, suitable for auxiliary lighting or atmosphere lighting. The third is internal integration in baffles, integrate light strip groove inside the baffle during aluminum baffle production, light strip is installed in the groove, light shines out through diffusion cover, baffle itself is both decorative component and lamp, this way is the most concise, can't see any lamp structure, highest integration degree, but need to customize baffles, cost is slightly higher. The fourth is top washing ceiling, install linear lights on the top of baffles, shine upward, wash the structural top plate, form reflected light, light is very soft, no direct glare, suitable for office spaces with high glare requirements, the entire ceiling is evenly illuminated, space looks higher and more transparent. The fifth is modeling lighting, combined with curved baffles or modeling baffles, lights are arranged along baffle modeling, forming light strips of various patterns, highlighting modeling effect, suitable for commercial spaces, lobbies and other areas requiring key decoration.

Lamp selection key points. First is light source, priority choose LED linear lights, energy saving, long life, high light efficiency, color temperature is selected according to space function, office choose 4000K neutral light, shopping mall choose 3500K-4000K warm white light, hotel choose 3000K warm light, color temperature in the same space should be unified, don't mix lights of different color temperatures. Second is color rendering index, CRI Ra not less than 80, spaces with high color requirements such as shopping malls, exhibition halls not less than 90, restore true color. Third is anti-glare, choose lamps with anti-glare cover or deep cup anti-glare, UGR unified glare rating not more than 19, avoid dazzling light. Fourth is power supply, choose good quality constant current power supply, long life, no stroboscopic, preferably hidden in the ceiling at a position convenient for maintenance. Fifth is dimming, public spaces better choose dimmable lamps, can adjust brightness according to different time periods, energy saving, can also create different atmospheres.

Design key points. First is lighting layout, basic lighting can be arranged with equal spacing light strips, spacing 1.2-1.8 meters, to ensure uniform illumination; key areas such as front desk, passage, exhibition area can locally increase lighting to improve illumination; atmosphere lighting can be arranged along modeling or wall edges, outline space contour. Second is brightness ratio, brightness ratio of basic lighting, key lighting, atmosphere lighting is controlled at 1:3:5, layered, not monotonous. Third is baffle specification coordination, when doing gap installation, baffle spacing should match lamp width, common linear lamp widths are 30mm, 50mm, 70mm, 100mm, baffle spacing is set to corresponding width, lamps just stuck in the gap. Fourth is maintenance consideration, lamps should be made detachable, power supply placed in easy to maintenance position, don't seal. Fifth is fire protection cooperation, emergency lighting, evacuation indication can be integrated in the light strip, don't install separately exposed, damage ceiling integrity.

Node processing is the key to lighting integration. First is junction between lamps and baffles, gap between lamps and baffles should be uniform, controlled within 1mm, preferably use same color frame, look integrated; second is lamp extension, when linear lamps are extended, joints should be handled well, no dark areas, light is continuous and uniform after extension; third is corner processing, lamps at corners should be 45-degree mitered, or use special corner connectors to ensure continuous light strip, don't disconnect at corners; fourth is equipment integration, fire sprinklers, smoke detectors, cameras and other equipment can be installed on the side of baffles or in gaps, don't interrupt light strips; fifth is reflection processing, upward washing ceiling lights, top plate should be painted white to improve reflection efficiency, don't paint dark.

Common problems and solutions. First is uneven lighting, bright spots and dark areas, mainly due to poor quality light strips or bad diffusion covers, choose good quality light strips and milky white diffusion covers, light strips are densely arranged, can be solved; second is glare, can see dazzling lamp beads standing below, mainly due to no anti-glare design, choose deep anti-glare lamps or add diffusion plates, adjust light angle, don't shine directly into human eyes; third is uneven gap between lights and baffles, mainly because no line is pulled to align during installation, install lamps first then baffles during installation, or pull line positioning first to ensure uniform gaps; fourth is difficult maintenance, lamps are sealed inside and can't be taken out, adopt buckle-installed lamps, can be removed without tools.

Now there are intelligent lighting systems, which can adjust color temperature and brightness, realize light on when people come, light off when people leave, automatically adjust brightness according to natural light, further energy saving, improve use experience. The combination of aluminum baffles and linear lighting not only gives play to the advantages of good decoration and convenient installation of aluminum baffles, but also realizes the effect of modern lighting, which is the development trend of public space ceilings in the future.
