Sound Absorption and Noise Reduction Principle and Engineering Application of Perforated Aluminum Panels

Sound absorption and noise reduction is one of the most core functional values of perforated aluminum panels. In modern buildings, with the extensive use of materials such as glass curtain walls, hard walls, and polished floors, indoor acoustic environment problems have become increasingly prominent. Excessive reverberation time and high noise have become important factors affecting office efficiency, viewing experience and learning environment. Perforated aluminum panels with sound-absorbing materials installed behind can effectively absorb sound energy, reduce reverberation time, and improve indoor acoustic environment while maintaining the beauty of metallic decoration. This article will start from acoustic physics principles and systematically analyze the implementation mechanism and engineering application methods of the sound absorption and noise reduction function of perforated aluminum panels.

The physical principle of sound absorption by perforated aluminum panels can be explained by the perforated panel resonance sound absorption theory. When sound waves hit the surface of the perforated aluminum panel, part of the sound waves reflect from the surface, and the other part passes through the holes into the air layer behind the panel. Inside the holes, air molecules vibrate with sound waves, generating viscous resistance through friction with the hole walls, converting sound energy into heat energy, thereby consuming sound energy. This effect is similar to the working principle of a Helmholtz resonator: each hole is equivalent to a short neck, and the cavity behind is equivalent to a resonance cavity. Sound waves of specific frequencies excite system resonance, producing maximum sound absorption near the resonance frequency. When porous sound-absorbing materials (such as glass wool, rock wool) are filled behind, the fiber structure of the sound-absorbing material further increases the resistance to air flow, expands the frequency range of sound absorption, and enables the perforated aluminum panel system to have good sound absorption performance in a wider frequency range.

The perforated aluminum panel sound absorption system usually consists of a three-layer structure. The first layer is the perforated panel, namely the aluminum alloy panel, which serves to protect the sound-absorbing material and provide a decorative appearance. The holes on the panel are the channels through which sound waves enter, and parameters such as hole diameter, perforation rate, and plate thickness directly affect the sound absorption frequency characteristics of the system. The second layer is the sound-absorbing material layer, usually made of porous materials such as glass wool, rock wool, and polyester fiber sound-absorbing boards, filled in the cavity between the perforated panel and the rear wall. The thickness, density and type of the sound-absorbing material determine the sound absorption capacity of the system. The third layer is the cavity or keel layer, namely the air layer between the sound-absorbing material and the rear base structure. The depth of this air layer also affects the sound absorption frequency characteristics of the system. Generally speaking, the deeper the cavity, the better the low-frequency sound absorption effect. These three layers together form a complete sound absorption system, and the parameters of each layer need to be optimally designed according to the target sound absorption frequency.

The main parameters affecting the sound absorption effect of perforated aluminum panels are as follows. The first is the perforation rate: the higher the perforation rate, the easier it is for sound waves to enter the sound-absorbing material behind, and the better the sound absorption effect. Generally speaking, when the perforation rate is above 15%, the panel itself has little impact on sound absorption performance, and the sound absorption effect is mainly determined by the sound-absorbing material behind; when the perforation rate is below 5%, the resonance sound absorption effect of the panel itself will be more obvious. The second is the hole diameter: the hole diameter affects the resonance frequency and high-frequency sound absorption performance of the system. Small hole diameters (1-3mm) have good high-frequency sound absorption effect, while large hole diameters (5mm or more) have relatively poor high-frequency sound absorption effect. The third is the plate thickness: increasing the plate thickness will lengthen the hole neck, which is equivalent to lengthening the short neck of the Helmholtz resonator, the resonance frequency moves to low frequency, low-frequency sound absorption is enhanced, but high-frequency sound absorption may decrease. The fourth is the thickness and density of the sound-absorbing material: the thicker and denser the sound-absorbing material, the better the sound absorption effect, especially the low-frequency sound absorption effect is significantly improved. The most commonly used sound-absorbing material in engineering is 50mm thick, 32kg/m³ density centrifugal glass wool, which has the highest cost performance. The fifth is the cavity depth: increasing the cavity depth is equivalent to increasing the volume of the resonance cavity, the resonance frequency decreases, and low-frequency sound absorption improves. In ceiling applications, the distance from the ceiling panel to the upper floor slab is the cavity depth, usually 200-500mm, which is very beneficial for low-frequency sound absorption.

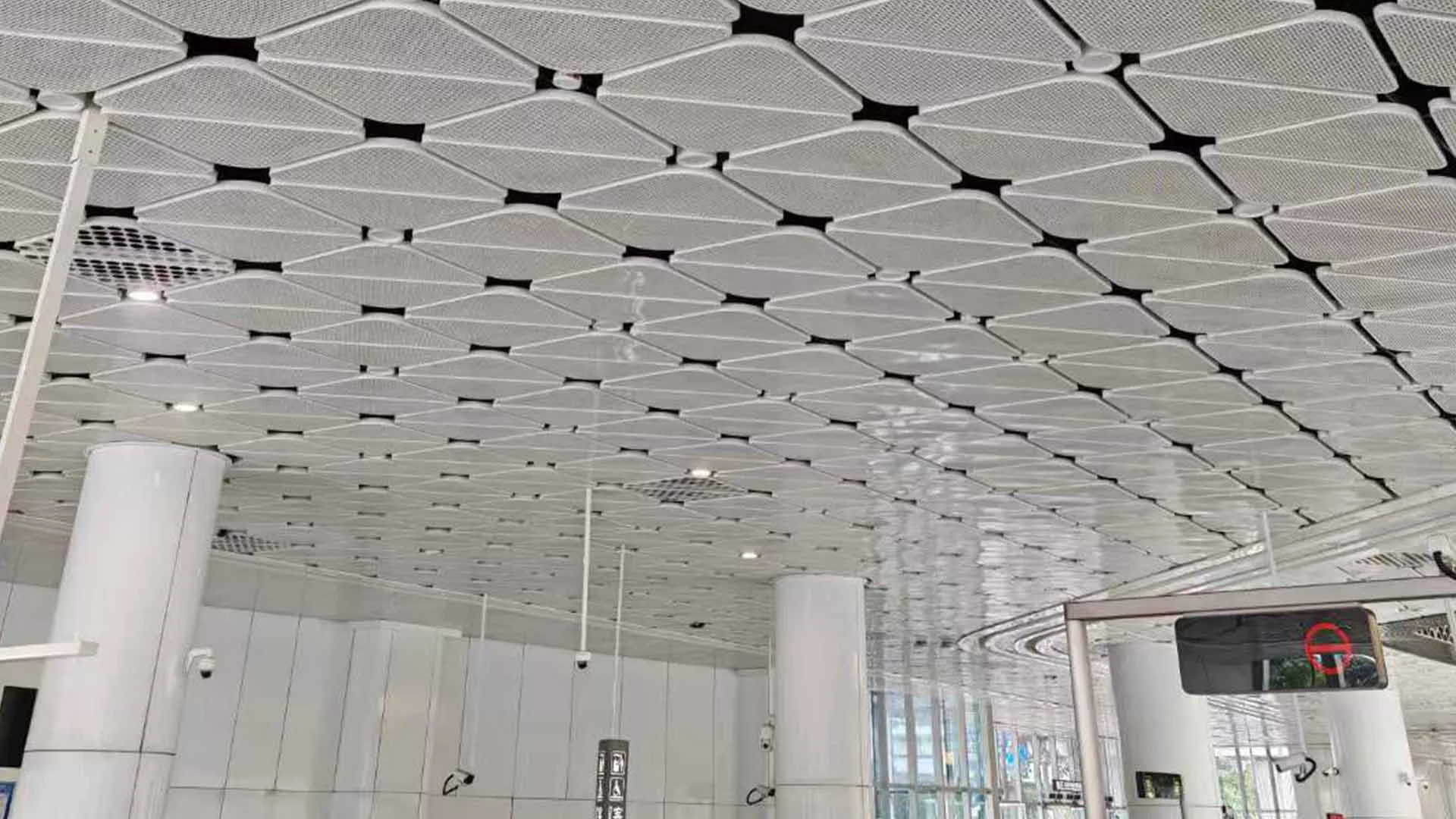

In engineering applications, perforated aluminum panel sound absorption ceiling is the most common application form. Offices, meeting rooms, classrooms, libraries and other office and cultural spaces have high requirements for the acoustic environment. Perforated aluminum panel sound absorption ceilings with glass wool installed behind can effectively control reverberation time and improve speech clarity. Generally speaking, the designed reverberation time for ordinary offices is between 0.5-0.8 seconds, and meeting rooms and classrooms require shorter reverberation times, between 0.4-0.6 seconds. Using perforated aluminum panels with 15-20% perforation rate and 2-3mm hole diameter, fitted with 50mm thick glass wool behind, usually meets the acoustic requirements of these spaces. In tall spaces such as stadiums, exhibition halls, and station halls, the problem of reverberation time is more prominent, because the space volume is large and hard surfaces are many, and the reverberation time is often as long as 3-5 seconds, seriously affecting speech clarity. In these tall spaces, large-area perforated aluminum panel sound absorption ceilings or wall sound absorption panels with thick sound-absorbing cotton and deep cavities installed behind are usually used to control the reverberation time within a reasonable range of 1.5-2.5 seconds. In professional acoustic spaces such as cinemas, theaters, and concert halls, the design requirements for perforated aluminum panel sound absorption systems are higher. It is necessary to accurately calculate the sound absorption coefficient of each frequency band, and adjust the hole diameter, perforation rate, sound-absorbing material thickness and cavity depth to make the frequency response curve of the entire space smooth and meet professional acoustic design standards.

In addition to indoor sound absorption, perforated aluminum panels also play an important role in special acoustic environments. In subway platforms and subway cars, the noise and vibration generated by train operation are very loud. It is necessary to use perforated aluminum panels with high sound absorption performance on platform ceilings and car interiors to reduce noise levels and improve passengers' riding experience. In factory workshops and equipment rooms, perforated aluminum panel sound-absorbing walls and ceilings can reduce the impact of machine noise on operators and improve the working environment. In spaces with extremely high requirements for acoustic environments such as recording studios, broadcasting studios, and listening rooms, perforated aluminum panel sound absorption systems can be designed as adjustable sound absorption structures as needed, changing the sound absorption frequency characteristics by adjusting the cavity depth or sound-absorbing material thickness to meet different acoustic needs. In addition, perforated aluminum panels can be combined with other acoustic materials (such as perforated gypsum boards, wood wool sound-absorbing boards, etc.) to build a more complete indoor acoustic system. In short, the perforated aluminum panel sound absorption and noise reduction system is an indispensable part of modern architectural acoustic design. It perfectly combines functionality and decoration, providing an efficient, beautiful and durable acoustic solution for all types of spaces.
