U Shape Aluminum Baffle Ceiling Full Guide

Linear suspended ceilings have become the mainstream decorative ceiling solution for global commercial and public buildings in recent years. Among all linear ceiling materials, U shape aluminum baffle ceiling takes the largest market share by virtue of balanced cost, convenient construction, flexible design and reliable safety performance. Many architects and project purchasers confuse U aluminum baffles with square aluminum tubes, do not know how to distinguish coating technology standards, or fail to match correct specifications for different building types. This comprehensive industry guide sorts out core production technologies, material comparison tables, professional selection standards, construction points and 2026 market trends of U shape aluminum baffle ceiling, providing reference for global engineering designers and procurement managers.

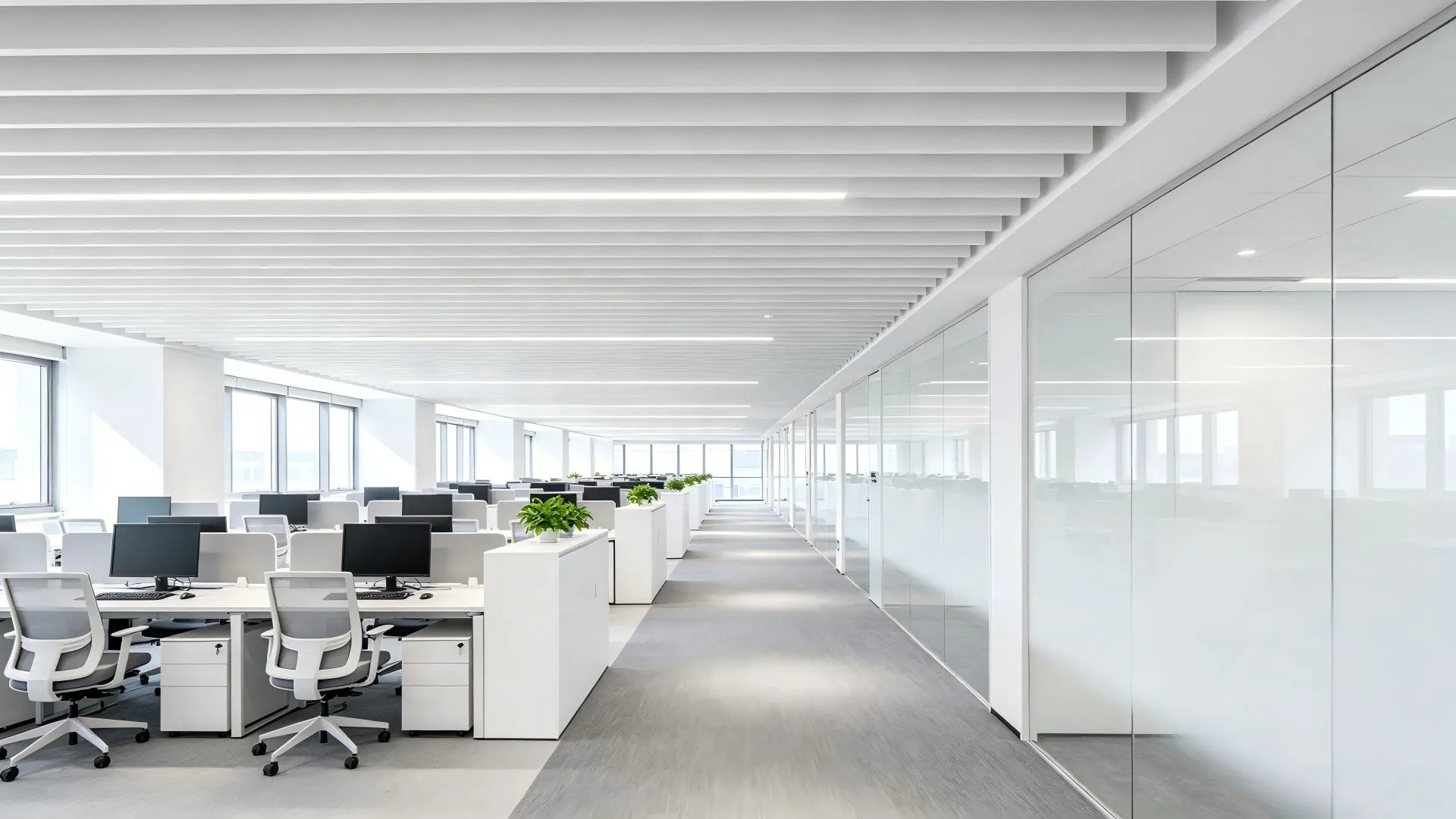

​​​​​​​U-Shaped Aluminum Baffle Ceiling Office

1. Core Manufacturing Technology of U Shape Aluminum Baffle Ceiling

Two mainstream forming methods for U channel aluminum baffles in the market: extruded integrated forming & bending plate forming.

1. Extruded Integrated U Baffle (Factory Main Product) High-temperature aluminum billet pushed through professional U-shaped mold by large-tonnage extruder, one-piece hollow U profile. Advantages: uniform wall thickness, strong anti-deformation capacity, smooth inner wall, available for ultra-long one-piece molding up to 12 meters. Disadvantages: slightly higher unit cost than bent plate U baffles. Best for large public construction projects with high durability requirements.
2. Bending Plate U Baffle Cut flat aluminum sheet and bend into U shape via bending machine, solid plate structure without hollow inner cavity. Advantages: low cost for small-size short-length orders. Disadvantages: easy to produce bending marks, poor anti-sagging performance under long-term suspension, limited maximum length. Suitable only for small indoor retail stores and temporary exhibition spaces.

2. Coating Technology Comparison Table

3. U Aluminum Baffle vs Square Aluminum Tube Performance Comparison

4. Professional Project Selection Standards

1. Select Forming Craft: Large public projects over 5,000 square meters choose extruded integrated U baffles; small temporary shops can adopt bent plate U baffles to control budget.
2. Select Surface Coating: Pure indoor space pick polyester powder coating; semi-outdoor, coastal buildings select PVDF fluorocarbon coating; high-end commercial lobby pursue wood grain thermal transfer finish.
3. Select U Slot Dimension: Low floor height below 2.8m choose narrow shallow U baffles (width 30–75mm, depth 20–50mm) to avoid depressing vision; high floor height above 4m for airport, mall atrium select wide deep U baffles (width 100–200mm, depth 80–150mm) to present layered vertical sense.
4. Select Wall Thickness: Conventional indoor projects adopt 1.2mm–1.5mm wall thickness; large-span ceiling over 6m choose 2.0mm–3.0mm thick wall to prevent long-term sagging deformation.
5. Select Installation Gap: Office, hospital space set 100mm–150mm gap for better sound absorption effect; high-end retail store use 50mm narrow gap for dense delicate linear texture.

5. On-site Installation Key Points

1. Keel Leveling: Adjust main keel horizontal error within ±2mm per 10 meters to guarantee all U baffles keep neat horizontal line.
2. Hanging Code Locking: Each U baffle equips two hanging codes for single-piece length above 3 meters to prevent tilting.
3. Expansion Gap Reserve: Leave 3–5mm expansion joint between two U baffle ends to release thermal expansion stress of aluminum material.
4. Post-installation Protection: Cover finished U ceiling with dust cloth during later wall painting and ground construction to avoid paint contamination.

6. 2026 Global Linear Aluminum Ceiling Industry Trends

1. Lightweight Ultra-thin U Baffle Popularization International architects tend to low-load ceiling design, 1.0mm–1.2mm thin-wall extruded U aluminum baffles market demand rises rapidly, manufacturers continuously upgrade thin-wall extrusion molds.
2. Wood Grain & Custom Color Demand Surge High-end commercial projects reduce single white matte U baffles orders, customized wood grain, metal brushed, special brand color U ceilings become mainstream bidding requirements.
3. Integration with Acoustic System Complete set solutions combining U aluminum baffle + back sound-absorbing cotton develop fast, airports, theaters, office buildings prioritize acoustic integrated linear ceiling systems.
4. Overseas Large Public Project Market Expansion Southeast Asia, Australia, Middle East new city construction projects increase, U shape aluminum baffle ceiling replaces traditional gypsum ceiling as standard public building ceiling material.
5. Digital Customization Service Upgrade Manufacturers launch free CAD drawing design, 3D render preview, digital sample delivery online service, shortening the design confirmation cycle for global overseas customers.

Conclusion

U shape aluminum baffle ceiling has stable market demand in global construction decoration industry thanks to its diversified design space, economical project cost and safe fireproof performance. Project purchasers and architects need to select corresponding extrusion craft, coating type and U slot specification according to project floor height, building type, service environment and budget. Following the lightweight and acoustic integrated industry trend, U aluminum linear baffle ceiling will occupy a larger share of commercial and public building ceiling market in the next five years.
