Ceiling Aluminum Baffles: Mainstream Choice Advantages for Public Space Ceiling Systems

In modern public space interior design, ceiling aluminum baffles have replaced traditional gypsum board ceilings, mineral wool board ceilings, and aluminum gusset ceilings, becoming the mainstream ceiling choice for public spaces such as shopping malls, offices, airports, subway stations, schools, hospitals, and supermarkets. According to data from the China Building Decoration Association, in the domestic public space ceiling market in 2025, the market share of aluminum baffle ceilings has exceeded 40%, and the proportion in new commercial projects has exceeded 60%, becoming the preferred material for public space ceiling systems. The reason why ceiling aluminum baffles have been widely recognized by the market stems from their comprehensive advantages in decorative effect, functional performance, installation and maintenance, cost control, green environmental protection and other aspects.

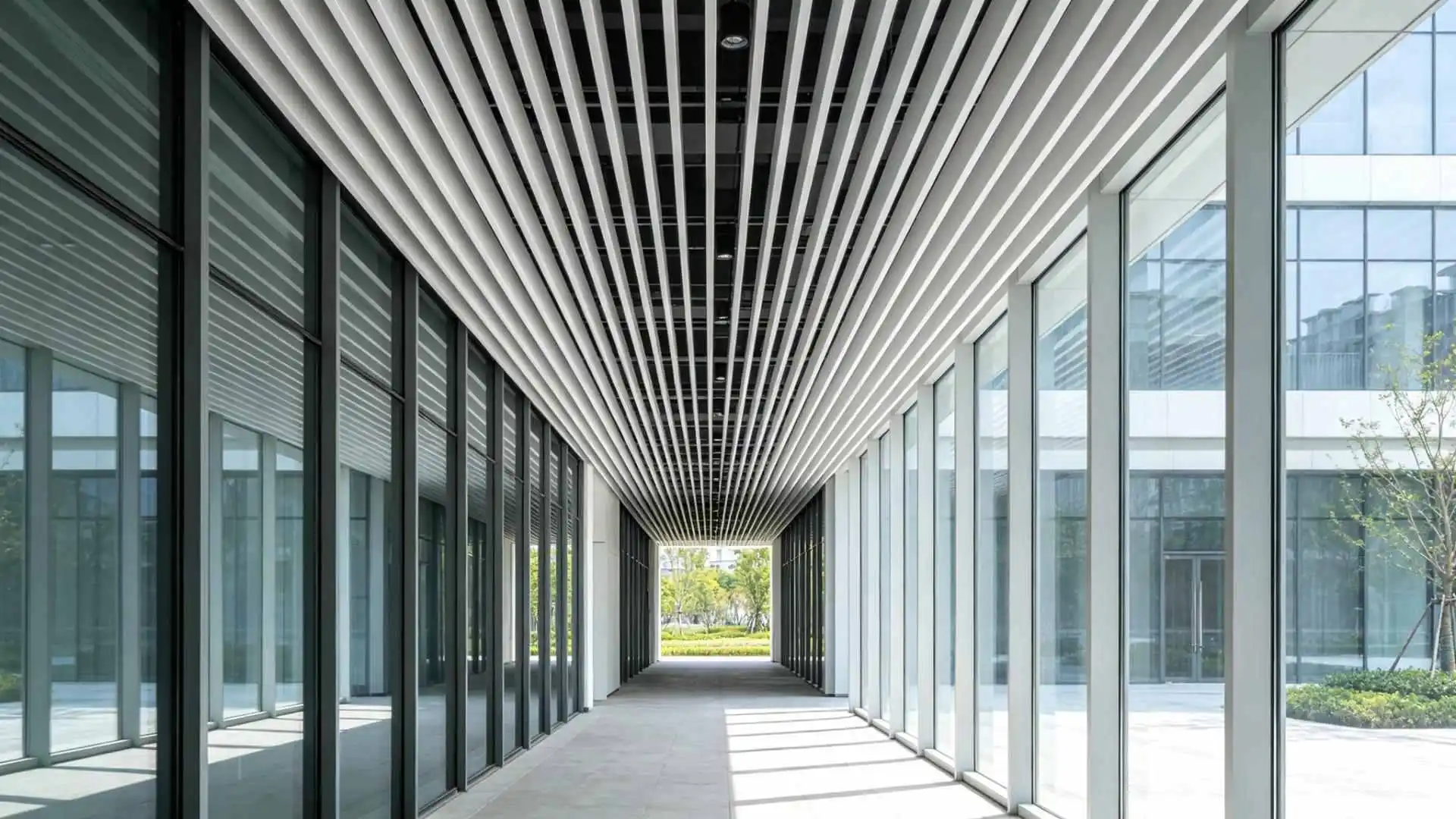

Aluminum square tube ceiling for building corridors and passageways

From the perspective of decorative effect, ceiling aluminum baffles have clear line sense and strong visual depth. By adjusting the specification, height, spacing, color and installation direction of the baffles, ever-changing visual effects can be achieved. The baffles can be installed parallel to the long direction of the building to lengthen the visual length of the space; they can also be installed crisscross to form a grid effect; they can also be designed with artistic effects such as height scattering, gradual spacing, and gradual color change to meet the design style needs of different spaces. Different from traditional closed ceilings, aluminum baffle ceilings belong to open ceiling systems, which can hide fire pipes, air conditioning ducts, cable trays and other equipment on the top of the baffles, while maintaining the transparency of the space, without the depression caused by closed ceilings, especially suitable for public spaces with lower floor heights. The surface treatment colors of aluminum baffles are rich. In addition to basic colors such as conventional white, gray and black, special effects such as wood grain, stone grain, wire drawing and anodizing can also be customized to adapt to various design styles such as modern simplicity, industrial style, new Chinese style, and light luxury.

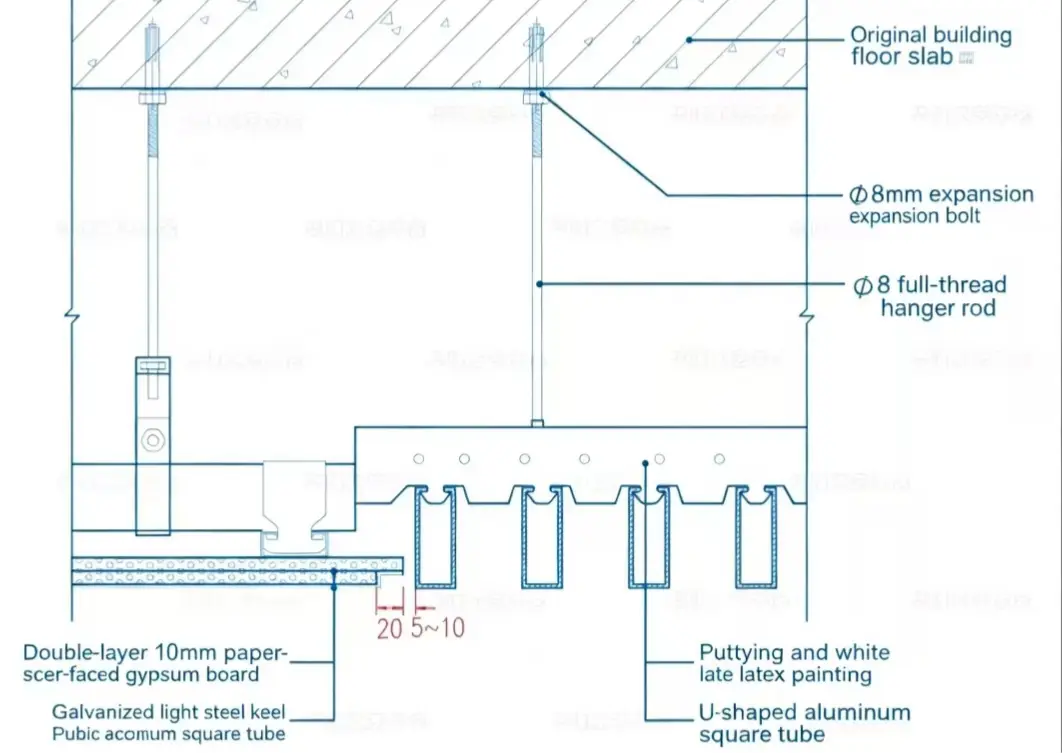

Aluminum linear baffle ceiling system structure diagram

From the perspective of functional performance, ceiling aluminum baffles have many advantages that traditional ceilings cannot match. The first is fire performance. Aluminum baffles are Class A non-combustible materials, which fully meet the requirements of the national "Code for Fire Protection in Design of Interior Decoration of Buildings". They will not burn or produce toxic smoke in case of fire, especially suitable for crowded public spaces; the second is ventilation performance. The open structure allows air conditioning air to circulate freely in the ceiling, effectively improving the cooling and heating efficiency of the air conditioning system, reducing energy consumption, and avoiding the condensation problem that easily occurs in closed ceilings; the third is acoustic performance. By pasting sound-absorbing non-woven fabric on the back of aluminum baffles or matching with sound-absorbing cotton, it can effectively absorb noise in the space, reduce reverberation time, and improve the acoustic environment of public spaces, especially suitable for noisy spaces such as subway stations, airports and shopping malls; the fourth is durability. Aluminum baffles have good moisture resistance, corrosion resistance and aging resistance. They will not be damp, deformed and moldy like gypsum boards, nor will they absorb water and sag like mineral wool boards. Their service life can reach more than 20 years, and they will not change color or deform after long-term use.

From the perspective of installation and maintenance, the advantages of ceiling aluminum baffles are very obvious. Aluminum baffles are light in weight, only 2-5kg per square meter, far lower than traditional ceiling materials such as gypsum board and stone, with low load requirements for building structures, especially suitable for old building renovation projects. The installation adopts prefabricated dry construction without complex processes. Ordinary workers can install after simple training, and the installation speed is 3-5 times that of traditional gypsum board ceilings. A 1000-square-meter ceiling project can be completed in a week, which can effectively shorten the construction period. Later maintenance is very convenient. Each aluminum baffle can be disassembled and installed separately without damaging the entire ceiling system. When the top pipelines, lamps, air conditioning equipment need to be repaired, only the baffles at the corresponding positions need to be removed, and they can be installed back as they are after maintenance, leaving no traces, and the maintenance cost is extremely low.

From the perspective of cost control, although the unit price of aluminum baffles is slightly higher than ordinary gypsum boards and mineral wool boards, the comprehensive cost is lower. On the one hand, aluminum baffles are installed quickly, and labor costs can be saved by more than 50%; on the other hand, aluminum baffles have a long service life and do not need to be renovated and replaced every 3-5 years like gypsum boards and mineral wool boards. The life cycle cost is only about 1/3 of traditional ceilings. At the same time, aluminum baffle ceilings do not require complex ceiling shapes, and good decorative effects can be achieved through simple specification and spacing changes, which can save a lot of modeling costs.

From the perspective of green environmental protection, aluminum baffles are 100% recyclable metal materials. No harmful substances such as formaldehyde and benzene are produced during the production process. They can be put into use immediately after installation without ventilation and odor removal, which fully meets the requirements of green buildings and healthy buildings. Aluminum baffles removed from old building renovation can be fully recycled and reused without generating construction waste, which conforms to the development concept of circular economy.

In terms of design matching, ceiling aluminum baffles can be perfectly combined with a variety of equipment and materials. The most common match is linear lamps. LED linear lights are installed in the gaps between baffles or embedded inside the baffles to achieve the lighting effect of seeing light without seeing lamps. The light is uniform and soft without glare; air conditioning outlets can be designed as linear outlets with the same specification as the baffles, integrated with the baffles to maintain the integrity of the ceiling; fire sprinklers, smoke alarms, surveillance cameras and other equipment can be hidden in the gaps of the baffles without damaging the overall visual effect of the ceiling. In addition to being used alone, aluminum baffles can also be used with aluminum gussets, gypsum boards, GRG materials, etc., to form a ceiling effect with combination of virtual and real and rich layers.

In terms of selection, conventional public space ceilings usually choose U-shaped aluminum baffles with bottom width of 40mm-80mm, height of 60mm-120mm, thickness of 0.6mm-0.8mm can meet the requirements, installation spacing is controlled between 50mm-150mm, the higher the ceiling height, the higher the baffle height and the larger the spacing. For offices and school classrooms with a floor height of about 3 meters, it is recommended to choose white or light gray aluminum baffles with bottom width of 50mm, height of 60mm and spacing of 100mm, which is simple and bright; for shopping malls and supermarkets with floor height of 4-6 meters, it is recommended to choose dark gray or wood grain aluminum baffles with bottom width of 60mm, height of 80mm and spacing of 120mm, with strong sense of hierarchy; for large spaces such as airports and subway stations with floor height of more than 6 meters, it is recommended to choose groove-shaped aluminum baffles with bottom width of 80mm-100mm, height of 150mm-200mm, thickness of more than 1.0mm, spacing of 150mm-200mm, with more atmospheric visual effect.
