U-Shaped vs Groove-Shaped Aluminum Baffles: Structural Differences and Selection Guide

In the aluminum baffle product system, U-shaped aluminum baffles and groove-shaped aluminum baffles are the two most widely used conventional products in the market. Many buyers and designers often confuse the differences between the two, leading to wrong selection that affects project effect and cost. In fact, although they are similar in appearance, there are obvious differences in structural design, installation method, load-bearing capacity and applicable scenarios. Correctly distinguishing the characteristics of the two is the basis for aluminum baffle selection.

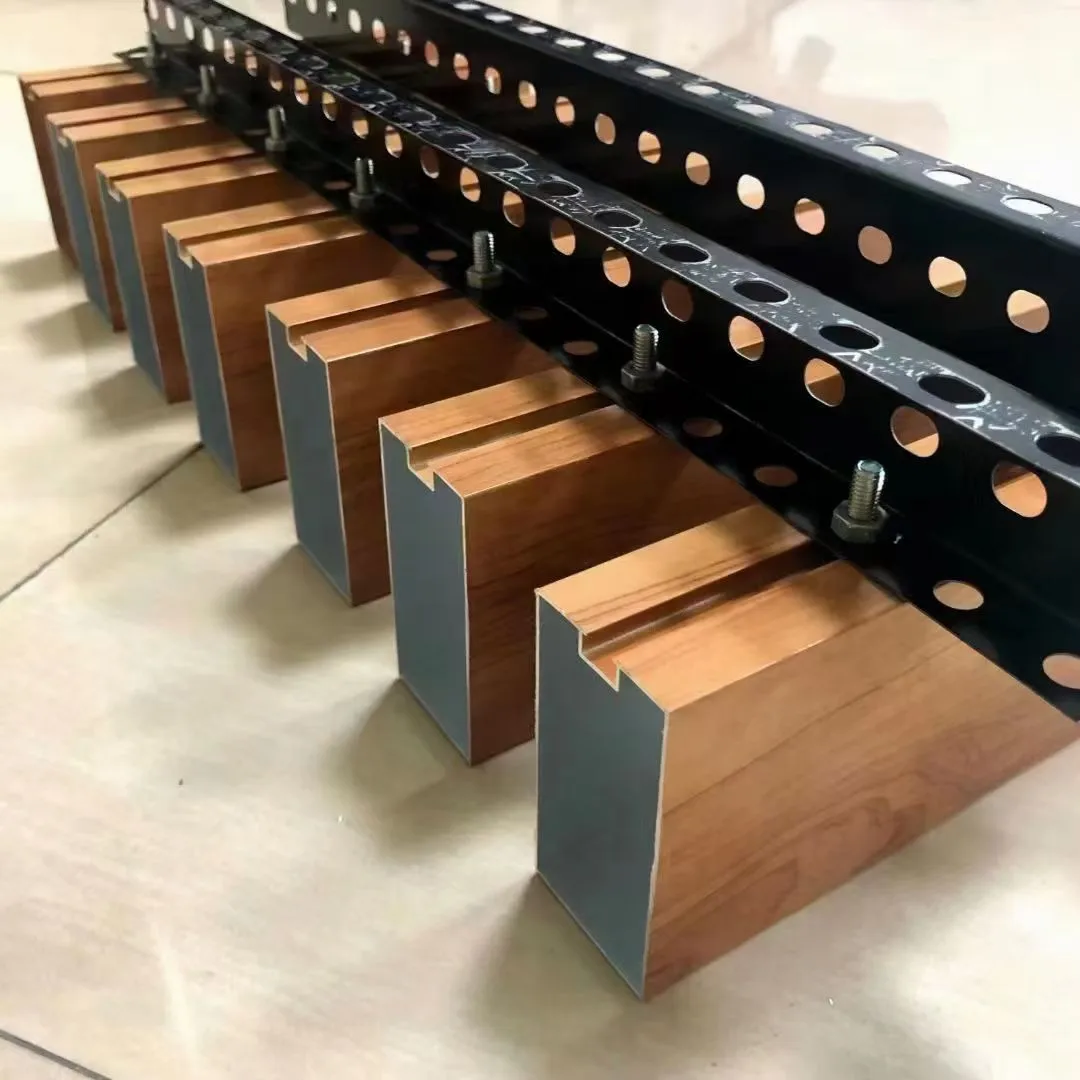

Groove-Shaped Aluminum Baffles Installation Style

From the perspective of structural design, the cross-section of U-shaped aluminum baffle is in a standard "U" shape, with two side edges of the same height, open top, flat bottom edge, and the angle between the side edge and the bottom edge is usually 90 degrees. Some products will design a small folded edge on the top of the side edge to increase structural strength and the position of installation buckles. U-shaped aluminum baffles are usually produced by continuous roll forming process, with high production efficiency and relatively low cost. Conventional specifications have a bottom width of 20mm to 150mm, a height of 30mm to 200mm, a thickness of 0.5mm to 1.5mm, and the length can be customized arbitrarily. The cross-section of groove-shaped aluminum baffle is similar to a "concave" shape, with inward installation grooves on the top of the two side edges. Some products are designed with C-shaped grooves, which can be directly clamped on the clamping teeth of special keels without additional buckle accessories. Groove-shaped aluminum baffles have higher structural strength, and the side thickness is usually thicker than that of U-shaped aluminum baffles of the same specification. The conventional thickness ranges from 0.8mm to 2.0mm, which can achieve larger specifications, with a maximum bottom width of 300mm and a maximum height of 400mm.

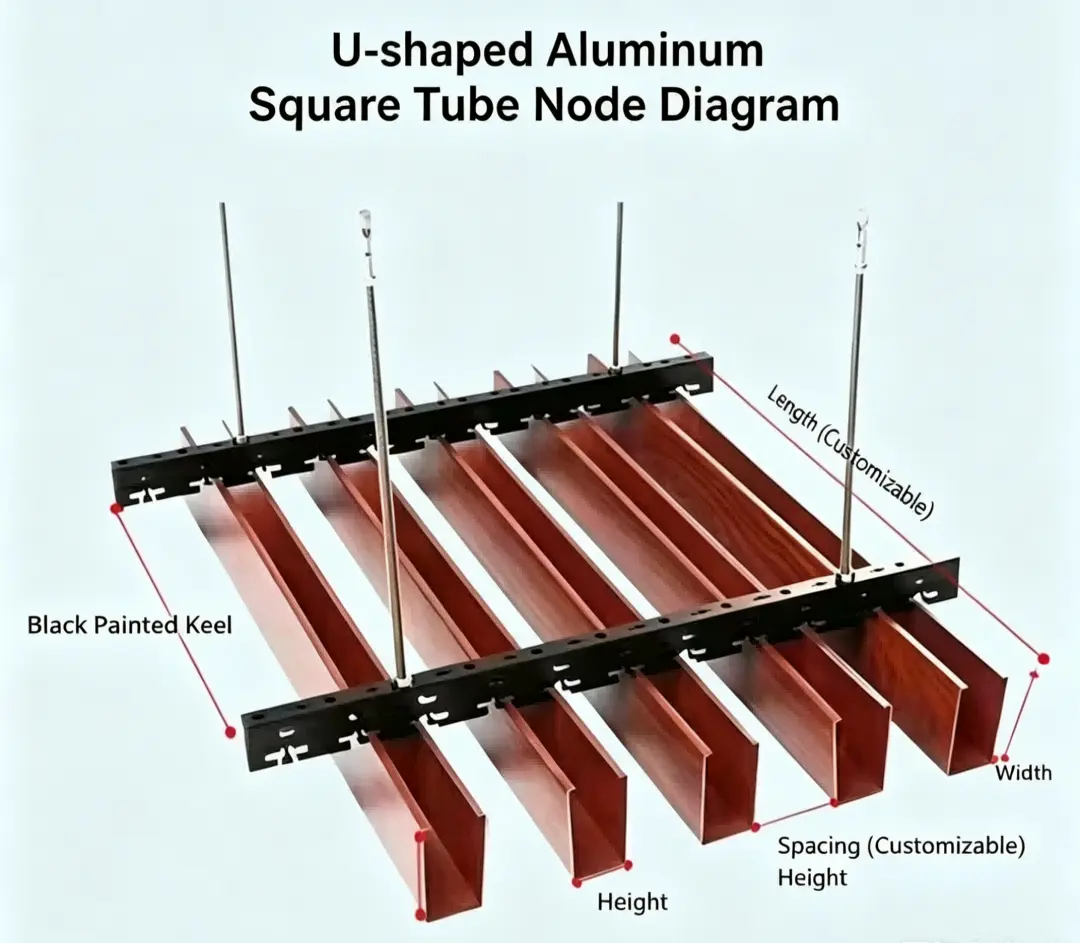

U-Shaped Aluminum Baffles Installation Style

From the perspective of installation system, U-shaped aluminum baffles usually adopt a buckle-type installation system. During installation, the special keel is first fixed on the building structure through suspenders, and the keel spacing is usually controlled at 1000mm-1200mm. Then the two side edges of the U-shaped aluminum baffle are clamped on the spring buckles of the keel. After installation, the buckles are hidden inside the baffle, and no installation accessories can be seen from the outside, with a clean and beautiful surface. U-shaped aluminum baffles have fast installation speed and convenient disassembly. During later maintenance, any single baffle can be disassembled separately without affecting other surrounding baffles, which is very suitable for public spaces that require frequent maintenance of top pipelines. The installation system of groove-shaped aluminum baffles is divided into two types. One is to use the C-shaped groove on the top to directly clamp on the special toothed keel. The keel spacing can be 1200mm-1500mm, with faster installation speed and stronger load-bearing capacity; the other is to fix the side edges on the keel from the inside of the baffle through bolts or self-tapping screws. This installation method has a firmer structure and is suitable for large-specification, large-spacing exterior walls or high ceiling projects, but disassembly is relatively troublesome, and later maintenance requires pulling out the baffle from the end.

From the perspective of performance differences, due to the folded edges and groove structures on the sides, groove-shaped aluminum baffles have significantly better structural strength and wind resistance than U-shaped aluminum baffles of the same thickness. Under the same thickness and specification, the load-bearing capacity of groove-shaped aluminum baffles is 1.5-2 times that of U-shaped aluminum baffles, with stronger wind uplift resistance, which is more suitable for scenarios with high structural strength requirements such as outdoor curtain walls, high ceilings, and large-span ceilings. The advantages of U-shaped aluminum baffles are high production efficiency, low cost, convenient installation, and good surface flatness, which are suitable for conventional indoor ceiling projects with a height of less than 3 meters and small spacing. In terms of ventilation performance, both belong to open ceiling systems, and the ventilation rate can be adjusted by adjusting the baffle spacing. However, due to higher side edges and more stable structure, groove-shaped aluminum baffles can achieve larger installation spacing and a wider range of ventilation rate adjustment.

From the perspective of applicable scenarios, U-shaped aluminum baffles are the first choice for indoor ceilings, widely used in conventional indoor decoration projects such as office ceilings, shopping mall corridor ceilings, supermarket ceilings, school classroom ceilings, hospital corridor ceilings, etc. The conventional installation spacing is controlled between 50mm-200mm, which can be matched with linear lamps, air conditioning outlets, fire sprinklers and other equipment to achieve a clean and unified visual effect. Groove-shaped aluminum baffles are more used in projects with high requirements for structural strength and wind resistance, such as exterior wall decoration, high ceiling ceilings, large-span public spaces, airport terminals, subway platforms, stadiums, etc. Especially for exterior wall aluminum baffle projects, almost all adopt groove-shaped aluminum baffle structure, which can withstand greater wind load and ensure structural safety for outdoor use.

In terms of cost, the price of groove-shaped aluminum baffles of the same specification and thickness is about 15%-30% higher than that of U-shaped aluminum baffles, mainly because the forming process of groove-shaped aluminum baffles is more complex, more materials are used, and the cost of installation keels is also higher. When selecting products for projects, it is necessary to make a comprehensive selection based on factors such as the use part of the project, ceiling height, wind load requirements, and later maintenance needs: U-shaped aluminum baffles are preferred for conventional indoor small-specification ceilings, with higher cost performance; groove-shaped aluminum baffles are preferred for exterior walls, high ceilings, large specifications, and large spacing projects, with safer structure.

It should be noted that some manufacturers in the market currently sell thin groove-shaped aluminum baffles as thick U-shaped aluminum baffles, or add folded edges to U-shaped aluminum baffles to pretend to be groove-shaped aluminum baffles. When purchasing, you need to pay attention to checking the cross-section structure and actual thickness to avoid buying low-quality products at high prices. Regular manufacturers' products will indicate the product type, structural size, thickness deviation and mechanical properties in the test report. When purchasing, you can ask the manufacturer to provide relevant test reports for verification.
