Detailed Explanation of Aluminum Wall Panel Processing

Aluminum wall panels are a commonly used material in the architectural decoration field. Due to their lightweight, corrosion resistance, and aesthetic appeal, they are widely used in the facades and interior ceilings of office buildings, shopping malls, and other buildings. Although the processing flow seems simple, each step requires precise control to ensure the quality and applicability of the final product. The following is an original summary of the complete aluminum wall panel processing flow based on practical application details.

The first step is the selection and pretreatment of raw materials, which is the foundation of quality. 3003 or 5005 series aluminum alloy sheets are selected, with the thickness controlled between 1.5-3.0mm depending on the application scenario. After the sheets arrive, they need to be polished, cleaned, and dried to remove the surface oxide film and stains to prevent coating peeling and poor adhesion during subsequent processing. The pretreated sheets must be stored properly to prevent secondary contamination.

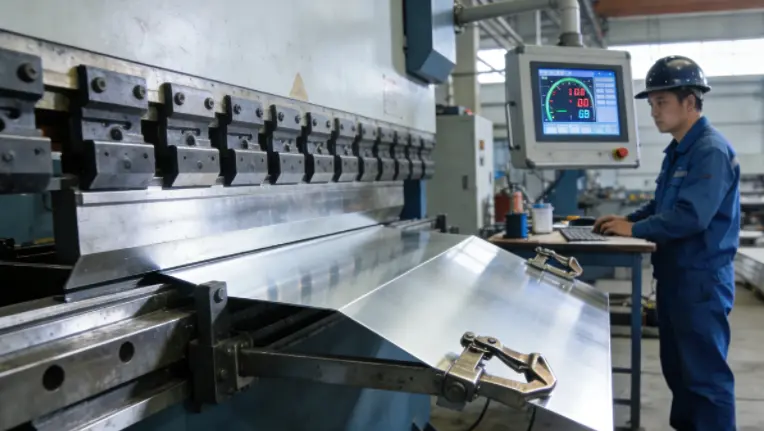

The second step is CNC cutting and bending, where precision is crucial. According to the design drawings, the pretreated sheets are fed into a CNC cutting machine. After inputting the dimensional parameters, the machine automatically cuts the sheets, with the error controlled within 0.1mm, ensuring a perfect fit between the sheet dimensions and the drawings. After cutting, a CNC bending machine bends the sheet metal at a preset angle, maintaining a reasonable curvature at the bend to avoid creases and cracks, while ensuring smooth and flat edges and corners. This step directly determines the fit of the aluminum sheet during installation.

The third step is surface treatment, balancing aesthetics and durability. Common treatment methods include fluorocarbon spraying and powder coating. First, the shaped sheet metal undergoes electrostatic dust removal, then primer and topcoat are sprayed, and finally, high-temperature curing forms a uniform, wear-resistant, and UV-resistant coating. The coated sheet metal has a consistent color, is free of bubbles and scratches, and can adapt to various outdoor environments.

Finally, quality inspection and packaging are carried out before shipment. Finished products undergo comprehensive testing, including dimensional accuracy, bending angle, and coating quality checks; unqualified products are rejected. Qualified products are wrapped in pearl cotton, sorted, and boxed, with clear specifications marked to prevent collisions and scratches during transportation, ensuring that the products can be directly installed upon arrival at the site. The entire production process is interconnected, and meticulous operation at each stage is key to creating high-quality aluminum single-panel decorative products.
